Taille: 0.96 "à 15.6"
Interface: IIC, USB
Structure: G G, G FF, P G
Artisanat de surface: AR, AF, AG, AS
Liaison: Air ou OCA
Toucher: Toucher multipoint
Zhunyi écran tactile capacitif est un type d'affichage utilisé capteur de courant humain. Il existe différents types de structure de panneau tactile capacitif, G G, G FF, P G. Selon l'application de l'écran tactile, le panneau tactile capacitif utilise des engins de surface AR, AF, AG ou AS. IIC et USB sont deux interface populaire. Il existe deux voies de liaison, la liaison à l'air et la liaison OCA.
TFT LCD écran tactile capacitif est une large utilisation dans les téléphones intelligents, ordinateur portable, maison intelligente, industrie, médical, éducation, agriculture, avion, POS, distributeur automatique, montre, véhicule, sonnette visuelle, navigation et ainsi de suite.
Size(inch) | Resolution | Model | Outline Dimension(mm) | Active Area(mm) | View Angle | Interface | Luminance(nits) | Touch Screen | OP(℃) |
| 1.28 | 240*240 | Z13006-ZC | 42*42*3.35 | 32.4*32.4 | IPS | SPI/I2C | 300 | CTP | -20℃~70℃ |
| 1.3 | 240*240 | Z13002-ZC | 26.17*29.22*1.5 | 23.4*23.4 | IPS | SPI/I2C | 300 | CTP | -20℃~70℃ |
| 1.3 | 240*240 | Z13008-ZC | 26.2 *9.22 *2.44 | 23.4*23.4 | IPS | SPI/I2C | 300 | CTP | -20℃~70℃ |
| 1.3 | 240*240 | Z154001-ZC | 31.50 *35.0*1.91 | 27.72*27.72 | IPS | SPI/I2C | / | CTP | -20℃~70℃ |
| 1.7 | 240*280 | Z17001-ZC | 33.23*43.65*3.63 | 27.97*32.63 | IPS | SPI/I2C | 500 | CTP | -20℃~70℃ |
| 2.1 | 480*480 | Z21002ZC | 53.28*53.28 | IPS | MIPI/I2C | 300 | CTP | -20℃~70℃ | |
| 2.8 | 240*320 | Z28001-ZC | 49.94* 71* 3.65 | 43.2 * 57.6 | IPS | MCU/I2C | 350 | CTP | -20℃~70℃ |
| 2.8 | 240*320 | Z28003-ZC | 49.94*71*4.09 | 43.2*57.6 | TN | SPI/I2C | 300 | CTP | -20℃~70℃ |
| 2.8 | 480*480 | Z28008-ZC | 73.03*76.58*2.74 | 70.13*70.13 | IPS | MIPI/I2C | 300 | CTP | -20℃~70℃ |
| 3 | 480*854 | Z30010-ZC | 49.80*85.10*4.03 | 37.44*66.61 | IPS | SPI+RGB/I2C | 450 | CTP | -20℃~70℃ |
| 3 | 480*854 | Z30063-ZC | 43.50*90.5*3.14 | 37.44*66.61 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 3 | 480*854 | Z30070-ZC | 46.40*78.574*3.95 | 37.44*66.61 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 3 | 480*854 | Z30071-ZC | 42.70*74.70*2.45 | 37.44*66.61 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 3.4 | 480*480 | Z34004-ZC | 65.72*69.64*2.45 | 60.48*60.48 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 3.5 | 320*240 | Z35008-ZC | 76.78*63.74*3.20 | 70.08*52.56 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 3.5 | 320*480 | Z35015-ZC | 69.36*87.30*3.70 | 48.96*73.44 | IPS | MIPI/I2C | 250 | CTP | -20℃~70℃ |
| 3.5 | 320*480 | Z35017-ZC | 55.46 *83.94*4.25 | 48.96*73.44 | IPS | MCU/SPI+RGB | 250 | CTP | -20℃~70℃ |
| 3.5 | 480*800 | Z35032-ZC | 51.12*86.41*3.38 | 45.36*75.60 | IPS | SPI+RGB/I2C | 350 | CTP | -20℃~70℃ |
| 4 | 720*720 | Z40050-ZC | 84.8*84.8*3.85 | 71.928*71.928 | IPS | MIPI/I2C | / | CTP | -20℃~70℃ |
| 4 | 480*480 | Z40053-ZC | 84.8*84.8*3.8 | 71.856*70.176 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 4.3 | 480*272 | Z43016-ZC1 | 105.5*67.2*4.7 | 95.04*53.86 | IPS | RGB/I2C | 450 | CTP | -30℃~85℃ |
| 4.3 | 480*272 | Z43016-ZC2 | 105.5*67.2*4.75 | 95.04*53.86 | IPS | RGB/I2C | 450 | CTP | -30℃~85℃ |
| 4.3 | 480*272 | Z43026-ZC | 126.04*84.86*6.75 | 95.04*53.86 | IPS | RGB/I2C | 450 | CTP | -20℃~70℃ |
| 5 | 720*1280 | Z49406-ZC | 67.56*122.35*3.29 | 62.10*110.40 | IPS | MIPI/I2C | 380 | CTP | -20℃~70℃ |
| 5 | 720*1280 | Z49420-ZC | 69.74*125.53*3.18 | 63.72*113.28 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 5 | 720*1280 | Z49421-ZC | 67.56*122.35*3.28 | 63.72*113.28 | IPS | MIPI/I2C | 380 | CTP | -20℃~70℃ |
| 5.5 | 720*1280 | Z55236-ZC | 80*143*3.62 | 68.04*120.96 | IPS | MIPI/I2C | 450 | CTP | -20℃~70℃ |
| 5.5 | 720*1280 | Z55240-ZC | 79.24*129.66*3.68 | 68.04*120.96 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 5.5 | 720*1280 | Z55290-ZC | 80*143*3.62 | 68.04*120.96 | IPS | MIPI/I2C | 420 | CTP | -20℃~70℃ |
| 5.5 | 720*1280 | Z55292-ZC | 80*143*3.62 | 68.04*120.96 | IPS | MIPI/I2C | 1200 | CTP | -20℃~70℃ |
| 5.7 | 640*480 | Z57011-ZC | 127.03*98.5*7.95 | 115.2*86.4 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 6.86 | 480*1280 | Z686006-ZC | 65.82*171.79*2.60 | 60.22*160.59 | IPS | 350MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 6.9 | 720*1440 | Z69001-ZC | 85.80*171.80*3.97 | 78.02*156.04 | IPS | MIPI/I2C | 450 | CTP | -20℃~70℃ |
| 7 | 600*1024 | Z70069-ZC | 164 *99*4.34 | 154.21*85.92 | IPS | RGB/I2C | 480 | CTP | -20℃~70℃ |
| 7 | 1024*600 | Z70078-ZC | 177.1*108.8*4.7 | 154.21*85.92 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 7 | 800*480 | Z70082-ZC | 165.4*104.59*7.53 | 152.40*91.44 | IPS | RGB/I2C | 350 | CTP | -20℃~70℃ |
| 7 | 1280*800 | Z70083-ZC | 161.0*107.0*2.5 | 149.76*93.6 | IPS | LVDS/I2C | 1000 | CTP | -20℃~70℃ |
| 7 | 1024*600 | Z70103-ZC | 164.86*99.96*4.995 | 154.21*85.92 | IPS | RGB/I2C | 370 | CTP | -20℃~70℃ |
| 7 | 720*1280 | Z70085-ZC | 97.80*235.35*4.15 | 86.94*154.56 | IPS | MIPI/I2C | 330 | CTP | -20℃~70℃ |
| 8 | 800*1280 | Z80015-ZC | 121.43*220.85*4.71 | 107.64*172.22 | IPS | MIPI/I2C | 280 | CTP | -20℃~70℃ |
| 8 | 800*1280 | Z80017-ZC | 127*95*199.1*4.45 | 107.64*172.22 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 8 | 800*1280 | Z80026-ZC2 | 137.47*198.20*4.66 | 107.64*172.22 | IPS | MIPI/I2C | 620 | CTP | -20℃~70℃ |
| 8 | 800*1280 | Z80029-ZC | 121.84*198.34*3.87 | 107.64*172.224 | IPS | MIPI/I2C | 380 | CTP | -20℃~70℃ |
| 8 | 800*1280 | Z80032-ZC | 137.47*198.*4.66 | 107.64*172.224 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 8 | 800*1280 | Z80033-ZC | 121.84*198.34*4.26 | 107.64*172.224 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 8 | 1280*800 | Z80036-ZC | 132.6*193.6*3.8 | 172.22*107.64 | IPS | LVDS/I2C | 330 | CTP | -20℃~70℃ |
| 10.1 | 800*1280 | Z101020-ZC | 167.36*248.58*4.95 | 135.36*216.58 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 10.1 | 800*1280 | Z101028-ZC3 | 159.20*244.90*2.85 | 135.36*225.60 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 10.1 | 800*1280 | Z101029-ZC2 | 143.05*228.55*2.60 | 135.36*216.58 | IPS | MIPI/I2C | 500 | CTP | -20℃~70℃ |
| 10.1 | 1280*800 | Z101033-ZC | 228.6*149.2*3.0 | 216.96*135.6 | IPS | LVDS/I2C | 400 | CTP | -20℃~70℃ |
Responsive Touch Sensing: TFT capacitive touch screens are highly responsive to touch, enabling smooth and accurate interactions. This feature enhances user experiences and ensures precise input recognition.
Multi-Touch Support: These multi-point touch panels support multi-touch gestures, allowing users to perform actions like pinch-to-zoom and swipe effortlessly. Multi-touch functionality enhances the versatility and functionality of the device.
Excellent Clarity and Color Accuracy: TFT (Thin-Film Transistor) technology provides vibrant colors and excellent clarity, making the display visually appealing. This is crucial for applications where color accuracy and image quality are paramount.
Durability: Capacitive touch screen panels are known for their durability. They are resistant to wear and tear, ensuring a longer lifespan, making them ideal for devices exposed to frequent use.
No Pressure Required: Unlike resistive touch screen, which require pressure for input recognition, LCD capacitive screens respond to the slightest touch. This light touch operation reduces user fatigue and provides a more natural interaction.
Widespread Application: Capacitive touchscreen displays are versatile and suitable for a wide range of applications, including smartphones, tablets, POS systems, industrial control panels, and interactive kiosks.
Les écrans tactiles capacitifs TFT sont le choix standard pour les smartphones et les tablettes modernes, permettant aux utilisateurs de naviguer et d'interagir avec leurs appareils de manière transparente.

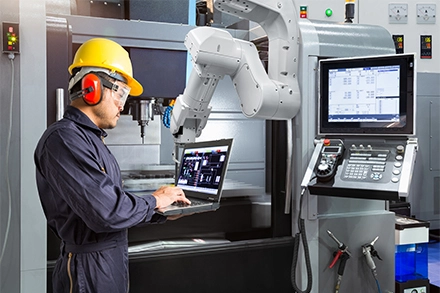

Dans les environnements industriels, ces écrans tactiles capacitifs TFT sont utilisés pour contrôler et surveiller les machines, offrant une interface robuste et fiable pour les opérateurs.

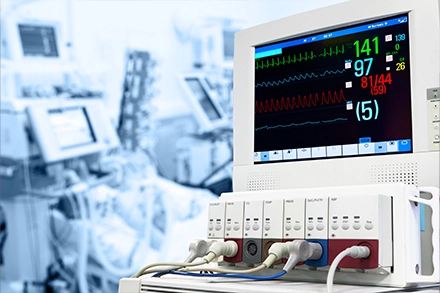

Les écrans capacitifs TFT sont utilisés dans divers dispositifs médicaux, y compris les systèmes de surveillance des patients, les équipements de diagnostic et les comprimés médicaux, garantissant une entrée précise et une facilité d'utilisation.
Les panneaux de contrôle et les appareils intelligents utilisent des écrans tactiles capacitifs de surface pour permettre aux propriétaires de gérer l'éclairage, la sécurité et d'autres systèmes de domotique.
Les écrans tactiles capacitifs sont utilisés dans les machines à sous, des machines à sous dans les casinos aux jeux d'arcade interactifs.
Dans le commerce de détail et l'hôtellerie, les écrans tactiles capacitifs sont intégrés dans les systèmes de point de vente, rationalisant les transactions et améliorant le service client.
La technologie Zhunyi fait attention à la qualité et au service. Bienvenue à nous rendre visite et à joindre les mains pour un avenir prospère.
