Taille: 12.3 pouce
Résolution: 1920*720
Zone active: 292.032*109.512mm
Interface: LVDS
Angle de vue: IPS
Luminosité: 1000 cd/m²
Panneau tactile: soutien CTP/RTP
Type d'approvisionnement: Usine/fabricant
Certification: ISO9001, IATF16949, ROHS, REACH

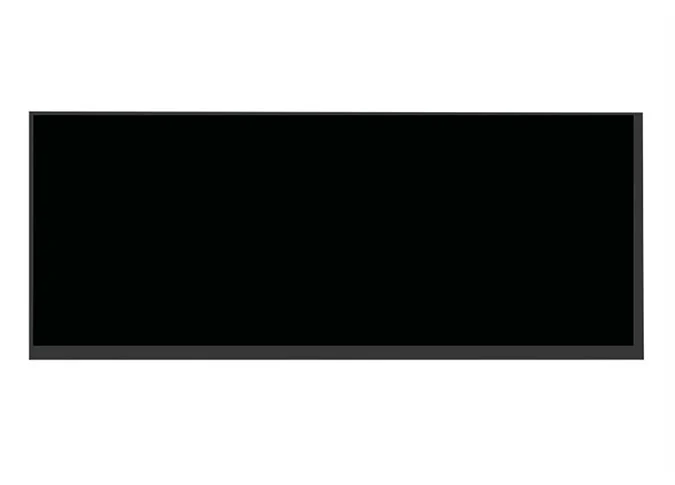

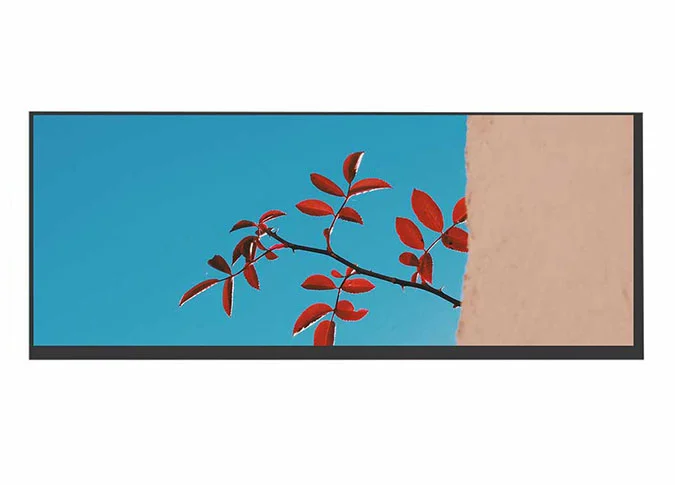

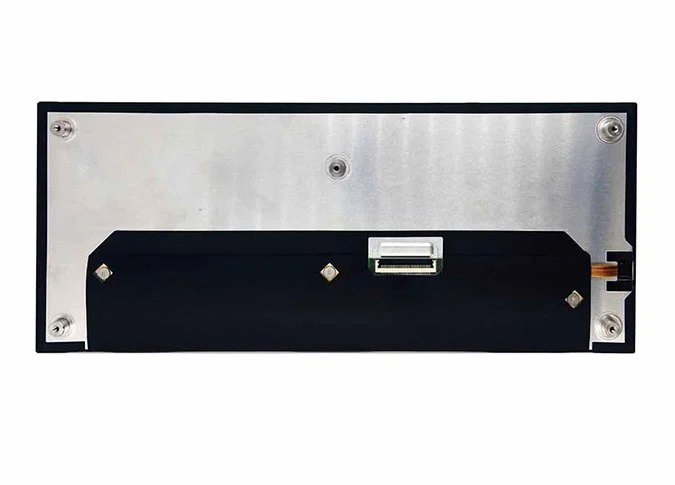

Z123003 est un écran à cristaux liquides (LCD) à transistor à couche mince à matrice active de couleur (TFT) avec une résolution 720 1920 *. La technique IPS (In-plan Switching) fait que ce module LCD de 12.3 "a un angle de vue plus large. Ce module LCD TFT a-Si est doté d'une interface LVDS, d'une luminosité de 1000cd/m².
Si vous avez des exigences particulières, telles que le lecteur IC, l'interface, le FPC, le panneau tactile, la luminosité, la couleur, le rétroéclairage, le panneau tactile, etc.Fabricant d'affichage LCD personnalisé Chine, Nous pouvons également personnaliser pour vous.
En tant queChine fournisseur d'affichage LCDNotre usine réalise ISO 9001: 2015 et IATF16949: 2016 système standard de qualité strictement, tous les écrans LCD ont passé ROHS, REACH Certification.
L'écran LCD haute luminosité de 12.3 pouces est largement utilisé dans le médical, la cuisine, l'appareil ménager, la maison intelligente, l'industrie, le portable, l'extérieur, le vélo électronique, le véhicule, le projecteur, la navigation, le tableau de bord, publicité d'ascenseur, machine à café, etc.
No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 12.3 | inch |
2 | Display Resolution | 1920 (H) × RGB × 720 (V） | pixels |
3 | Pixel Pitch | 152.1(H)× 152.1 (V） | um |
4 | LCM Outline Dimension (Without FPC） | 321.6 (W) ×138.8 (H) ×6.15 (T) | mm |
5 | LCD Active Area | 292.032 (W) ×109.512 (H） | mm |
6 | View Direction (Gray Inversion) | FULL VIEW | - |
7 | Driver IC | / | - |
8 | Pixel Arrangement | RGB-Stripe | - |
9 | Display Mode | Normal Black | - |
10 | Pixel Driving Element | a-Si TFT | - |
11 | LCD Transmittance | Typ.: TBD | - |
12 | LCD Contrast Ratio | Typ.: 1100; Min:900 | - |
13 | FPC Version | Z123003-P50 V1 | - |
14 | Interface | LVDS | - |
15 | Operating Temperature | -20°C~ 70°C | - |
16 | Storage Temperature | -30°C~ 80°C | - |
17 | Backlight Arrangement | LED/4 Series 11 Parallel (44 lights in total) | - |
18 | Luminance | Typ.: 400 | nit |
19 | Weight | 0.515 | kg |
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | GND | Ground |
2 | NC | No connect |
3-4 | VCC | Panel Power |
5-6 | GND | Ground |
7-8 | NC | No connect |
9 | GND | Ground |
10 | O_IN0- | Odd pixel negative LVDS differential clock input |
11 | O_N0+ | Odd pixel positive LVDS differential clock input |
12 | O_IN1- | Odd pixel negative LVDS differential clock input |
13 | O_N1+ | Odd pixel positive LVDS differential clock input |
14 | O_IN2- | Odd pixel negative LVDS differential clock input |
15 | O_N2+ | Odd pixel positive LVDS differential clock input |
16 | O_CK- | Odd pixel negative LVDS differential clock input |
17 | O_CK+ | Odd pixel positive LVDS differential clock input |
18 | O_IN3- | Odd pixel negative LVDS differential clock input |
19 | O_N3+ | Odd pixel positive LVDS differential clock input |
20 | E_IN0- | Even pixel negative LVDS differential clock input |
21 | E_N0+ | Even pixel positive LVDS differential clock input |
22 | E_IN1- | Even pixel negative LVDS differential clock input |
23 | E_N1+ | Even pixel positive LVDS differential clock input |
24 | E_IN2- | Even pixel negative LVDS differential clock input |
25 | E_N2+ | Even pixel positive LVDS differential clock input |
26 | E_CK- | Even pixel negative LVDS differential clock input |
27 | E_CK+ | Even pixel positive LVDS differential clock input |
28 | E_IN3- | Even pixel negative LVDS differential clock input |
29 | E_N3+ | Even pixel positive LVDS differential clock input |
30 | GND | Ground |
31 | NC | No connect |
32 | RESET | Global reset pin, active low. |
33 | STBYB | Standby mode, active low. |
34 | CA3 | Output signal to indicate self protection mode, when DE, HS, VS, DCLK, any of these signals is missing, it will become High. If using this pin, CA3 need to pulled low by an resistor, else, let it floating. |
35 | SCL | Serial interface clock input. (User folating) |
36 | SDA | Serial interface data input/output. (User folating) |
37 | CSB | Serial interface chip enable. (User folating) |
38-39 | GND | Ground |
40 | NC | No connect |
41-43 | LEDA | BL Anode |
44 | NC | No connect |
45-48 | LEDK | BL Cathode |
49 | NTC_A | NTC_Anode |
50 | NTC_K | NTC_Cathode |
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on. | ||
