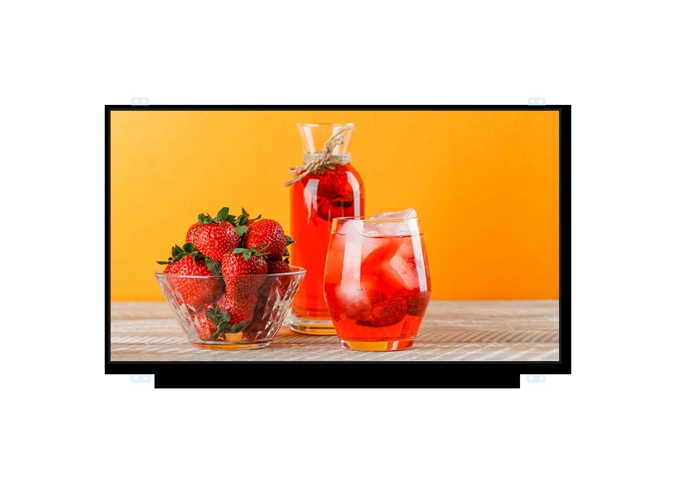

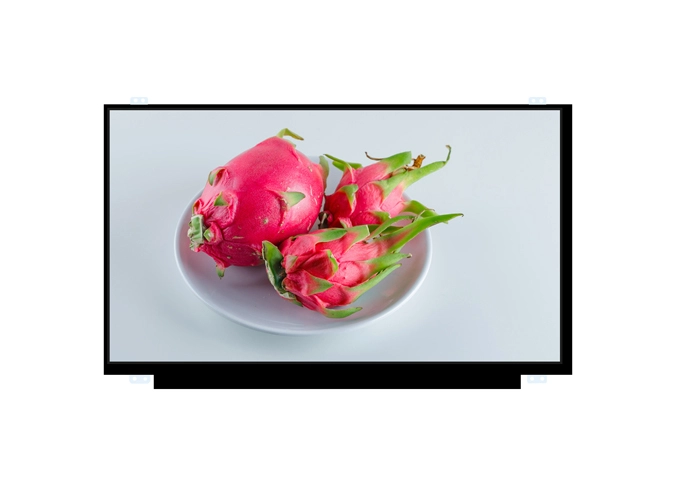

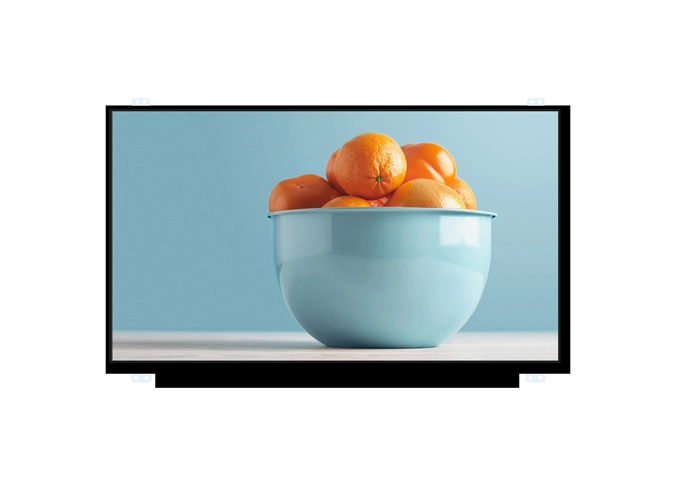

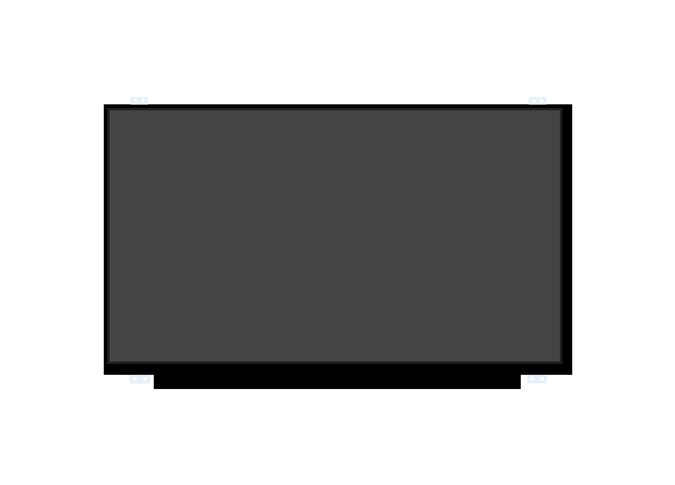

Z133001 13.3 pouces 1920x1080 TFT LCD LCD Interface Edp Vue complète Angle Pleine Définition

Screen Diagonal

13.3”(Diagonal)

inch

Active Area

293.76(H) ×165.24(V)

mm

Pixels (H x V)

1920XRGBX1080

Pixel Pitch

0. 153(H) x 0. 153 (V)

mm

Pixel Arrangement

RGB Vertical Stripe

Display Mode

Normally Black

Outline Dimension

300.26(H) x 187.37(V) x 2.5(D)

mm

Electrical Interface (Logic)

EDP

Support Color

16.7M colors

Luminance of white

350 Typ.

cd/m2

Surface treatment

Anti-glare coating (3H)

1

NC

Reserved for LCD manufacturer’s use

2

H_GND

High Speed Ground

3

Lane1_N

Complement Signal Link Lane 1

4

Lane1_P

True Signal Link Lane 1

5

H_GND

High Speed Ground

6

Lane0_N

Complement Signal Link Lane 0

7

Lane0_P

True Signal Link Lane 0

8

H_GND

High Speed Ground

9

AUX_CH_P

True Signal Auxiliary Channel

10

AUX_CH_N

Complement Signal Auxiliary Channel

1 1

H_GND

High Speed Ground

12

LCD_VCC

LCD logic and driver power(3.3V)

3.3V

13

LCD_VCC

LCD logic and driver power(3.3V)

3.3V

14

NC

Reserved for LCD manufacturer’s use

15

LCD_GND

LCD logic and driver ground

16

LCD_GND

LCD logic and driver ground

17

HPD

HPD Signal

18

BL_GND

Backlight ground

19

BL_GND

Backlight ground

20

BL_GND

Backlight ground

21

BL_GND

Backlight ground

22

BL_ENABLE

Backlight on/off

23

BL_PWM_DIM

System PWM signal input

24

NC

Reserved for LCD manufacturer’s use

25

NC

Reserved for LCD manufacturer’s use

26

BL_PWR

Backlight power (6V~21V)

-

27

BL_PWR

Backlight power (6V~21V)

28

BL_PWR

Backlight power (6V~21V)

-

29

BL_PWR

Backlight power (6V~21V)

-

30

NC

Reserved for LCD manufacturer’s use

-
