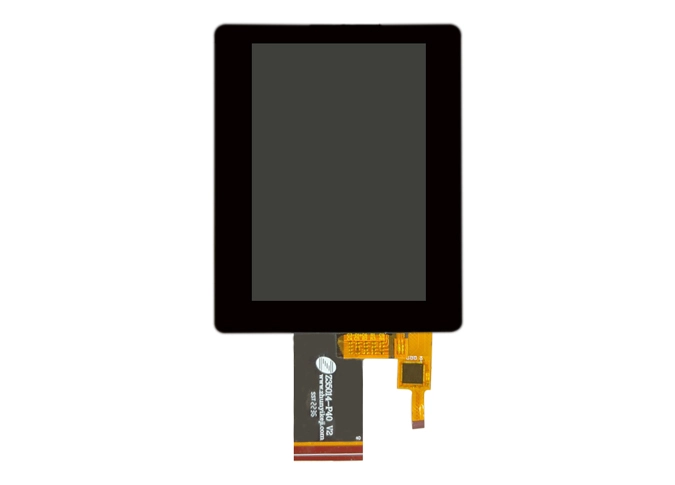

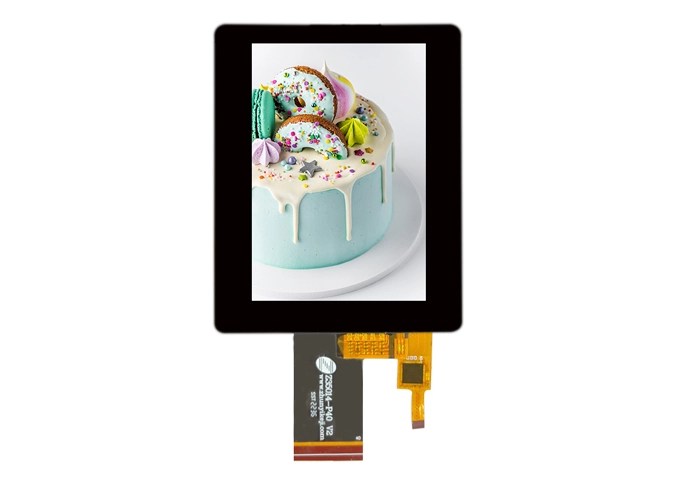

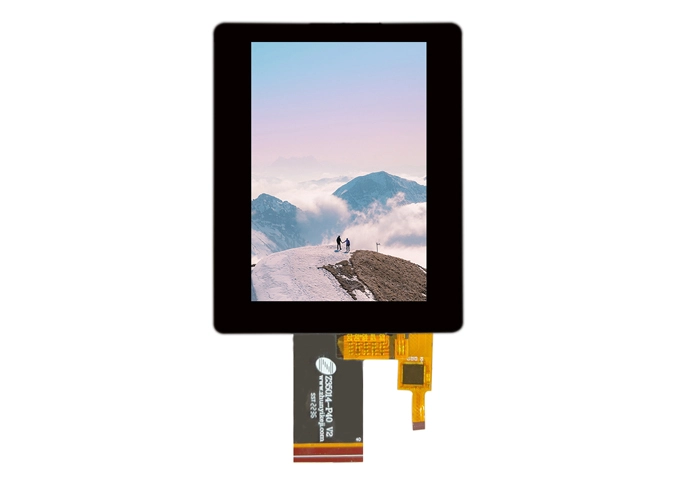

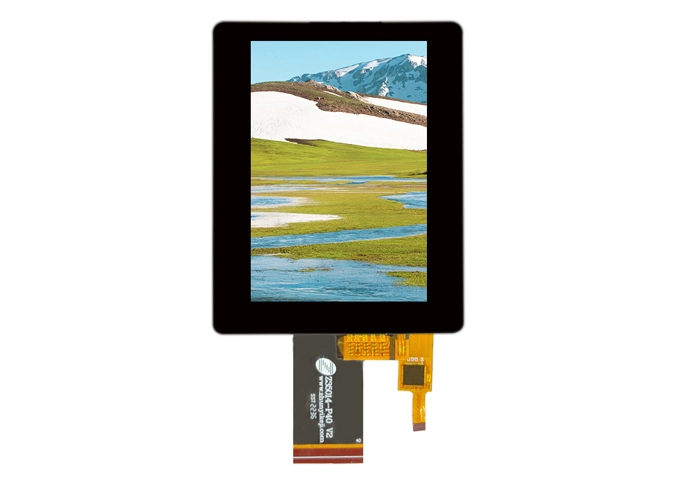

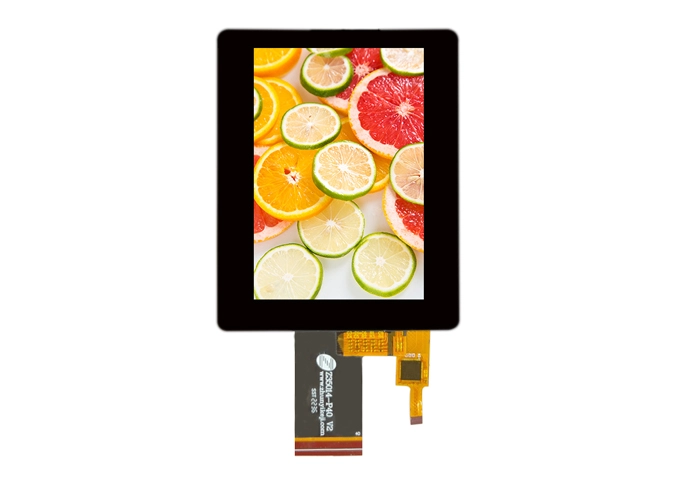

Z35015-ZC 320*480 3.5 pouces I2C TFT écran tactile capacitif ILI9488 contrôleur de pilote IPS View

1

Display Size (Diagonal)

3.5

inch

2

Display Resolution

320(H） × RGB × 480（V）

pixels

3

Pixel Pitch

153(H）× 153（V）

um

4

CTP Outline Dimension

(Without FPC）

69.36 (W) ×87.30 (H) ×3.70 (T)

mm

5

LCD Outline Dimension

51.96 (W) × 80.22 (H) × 0.8 (T)

mm

6

LCD Active Area

48.96（W） ×73.44（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ILI9488

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.05%  Min:3.45%

-

13

LCD Contrast Ratio

Typ.: 1000  Min:800

-

14

FPC Version

Z35014-P40 V2

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/3 Series 2 Parallel (6 lights in total)

-

19

Luminance

250

nit

20

Weight

0.035

kg

1

GND

Ground

2

TDP0

Positive MIPI differential data input

3

TDN0

Negative MIPI differential data input

4

GND

Ground

5

TDP1

Positive MIPI differential data input

6

TDN1

Negative MIPI differential data input

7

GND

Ground

8

TCP

Positive MIPI differential CLOCK input

9

TCN

Negative MIPI differential CLOCK input

10

GND

Ground

11-12

NC

No Connection

13

GND

Ground

14-15

NC

No Connection

16-17

GND

Ground

18-19

1.8V

POWER SUPPLY（1.8V）

20

ID1

ID1 PIN

21

ID2

ID2 PIN

22-23

NC

No Connection

24

RESET

LCM  RESET  PIN

25-26

NC

No Connection

27

GND

Ground

28-29

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

30

GND

Ground

31

NC

No Connection

32-33

GND

Ground

34

NC

No Connection

35-36

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

37

GND

Ground

38-39

VCC

POWER SUPPLY（2.8V）

40

NC

No Connection

RESET voltage should be consistent with 1.8V voltage, or there probably is black screen fault when power on.
