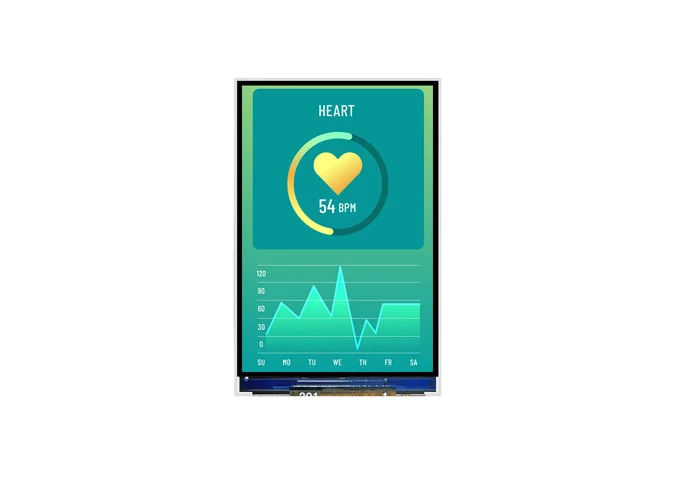

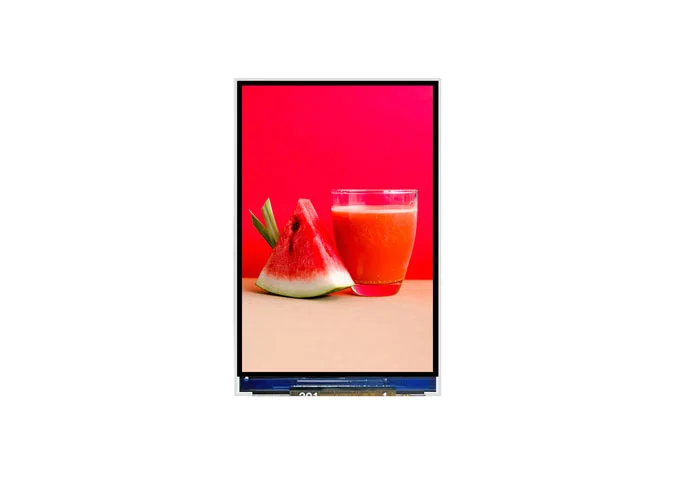

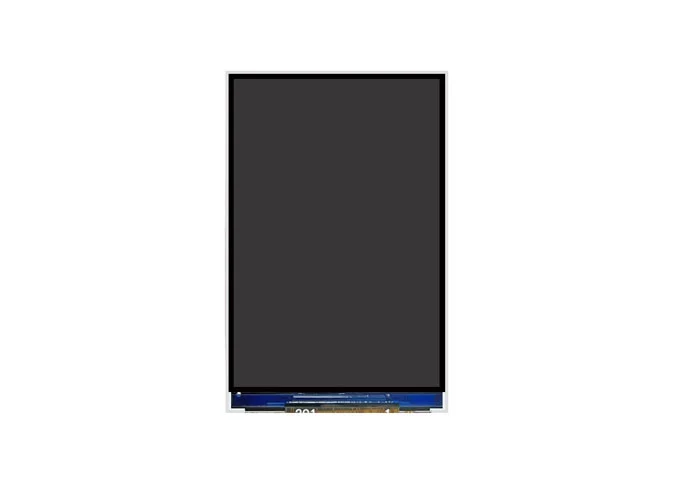

Z35018 3.5 pouces 320*480 IPS écran LCD écran SPI interface ILI9488 contrôleur de l'usine

1

Display Size (Diagonal)

3.5

inch

2

Display Resolution

320(H）× RGB × 480（V）

pixels

3

Pixel Pitch

73(H）× 219（V）

um

4

LCM Outline Dimension

(Without FPC）

53.76 (W) ×82.39 (H) ×2.23 (T)

mm

5

LCD Outline Dimension

51.96 (W) × 80.22 (H) × 0.8 (T)

mm

6

LCD Active Area

48.96（W）×73.44（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ILI9488

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 6.2%  Min:5.25%

-

13

LCD Contrast Ratio

Typ.: 1200  Min:900

-

14

FPC Version

TBD

-

15

Interface

SPI

-

16

Operating Temperature

-30°C~ 85°C

-

17

Storage Temperature

-30°C~ 85°C

-

18

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

19

Luminance

300（TPY）

nit

20

Weight

0.020

kg

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3

GND

Ground

4

VCC

POWER SUPPLY

5

IOVCC

POWER SUPPLY

6

CS

LCM  SPI  Chip Select  PIN

7

GND

Ground

8

SDA

LCM  SPI data (SDA) data input (MOSI)

9

GND

Ground

10

SCK

LCM  SPI clock (SCL) clock (SCLK)

11

GND

Ground

12

RESET

LCM  RESET  PIN

13

GND

Ground

14

DC

LCM  Data/Command Control  PIN

15

GND

Ground

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
