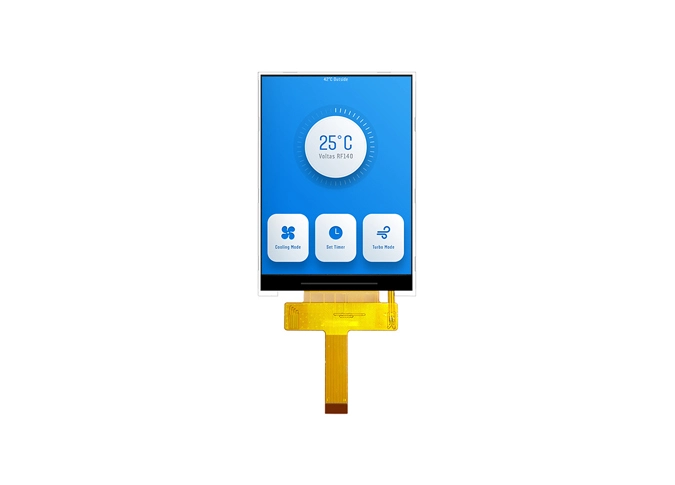

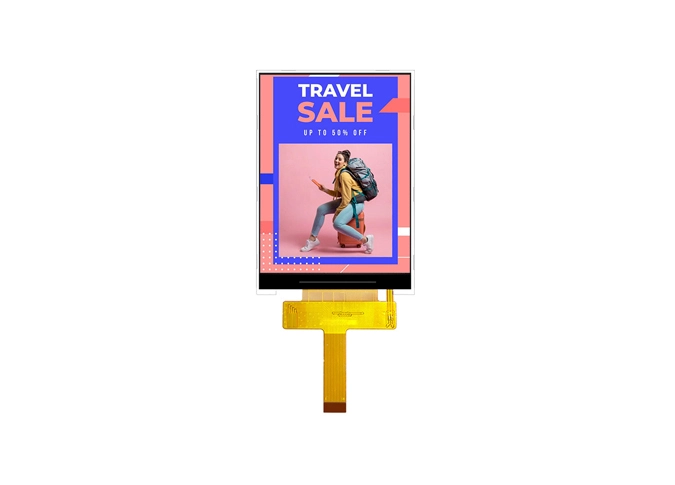

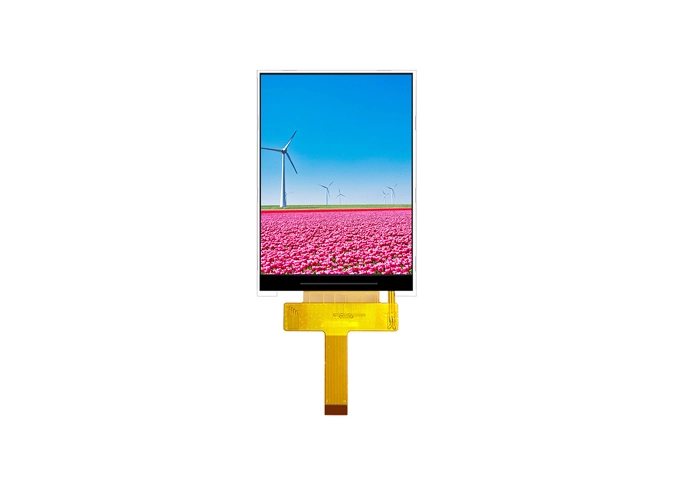

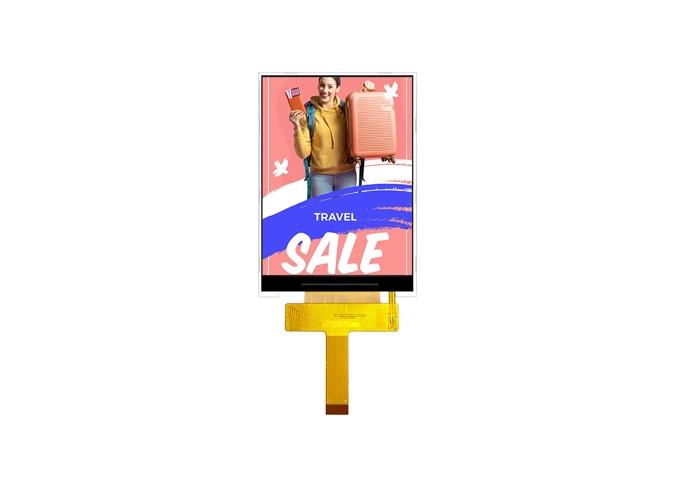

Z35030-P25 3.5 pouces TFT LCD Module 480*800 25PIN MIPI Interfae ST7701S IC

1

Display Size (Diagonal)

3.5

inch

2

Display Resolution

480 (H) × RGB × 800 (V)

pixels

3

Pixel Pitch

283 (H) × 283 (V)

um

4

LCM Outline Dimension

(Without FPC）

50.16 (W) × 86.3 (H) × 2.1 (T)

mm

5

LCD Outline Dimension

-

mm

6

LCD Active Area

45.36 (W) × 75.6 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7701S-G5

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

-

-

13

LCD Contrast Ratio

-

-

14

FPC Version

-

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/7Series 1 Parallel (7lights in total)

-

19

Luminance

300

nit

20

Weight

0.015

kg

1

GND

Ground

2

LCD_ID

NC

3

GND

Ground

4

VCC

POWER SUPPLY (2.8V）

5

IOVCC

I/O POWER SUPPLY (1.8V）

6

FMARK(TE)

Tearing Effect PIN

7

RESET

LCM RESET PIN

8

GND

Ground

9

DISP_D0_N

Negative MIPI differential data input

10

DISP_D0_P

Positive MIPI differential data input

11

GND

Ground

12

DISP_CLK_N

Negative MIPI differential CLOCK input

13

DISP_CLK_P

Positive MIPI differential CLOCK input

14

GND

Ground

15

DISP_D1_N

Negative MIPI differential data input

16

DISP_D1_P

Positive MIPI differential data input

17

GND

Ground

18-19

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

20-21

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

22-25

NC

NO CONNECTOR

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
