Z35030-P40 3.5 pouces écran LCD TFT 480*800 40PIN SPI RGB Interface ST7701S Pilote

  • Taille: 3.5 pouce

  • Résolution: 480*800

  • Interface: SPI RGB

  • Angle de vue: IPS

  • Luminosité: 300 cd/m²

  • Panneau tactile: soutien CTP/RTP

  • Type d'approvisionnement: Usine/fabricant

  • Certification: ISO9001, IATF16949, ROHS, REACH

3.5 inch tft lcd screen
3.5 inch tft lcd screen
3.5 lcd screen
3.5 tft lcd screen
3.5 inch tft screen

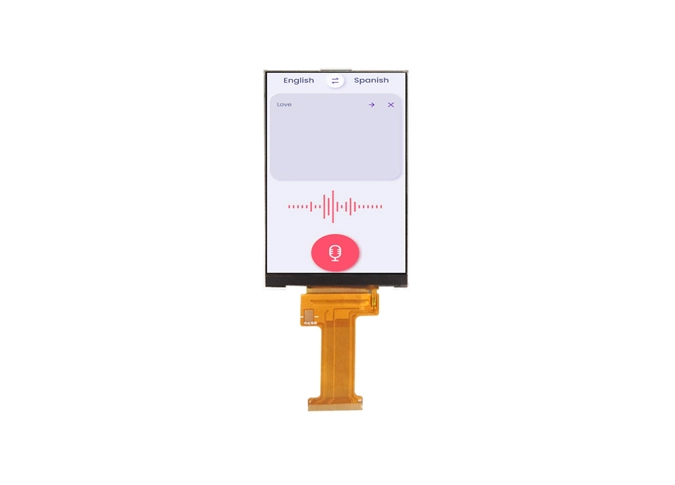

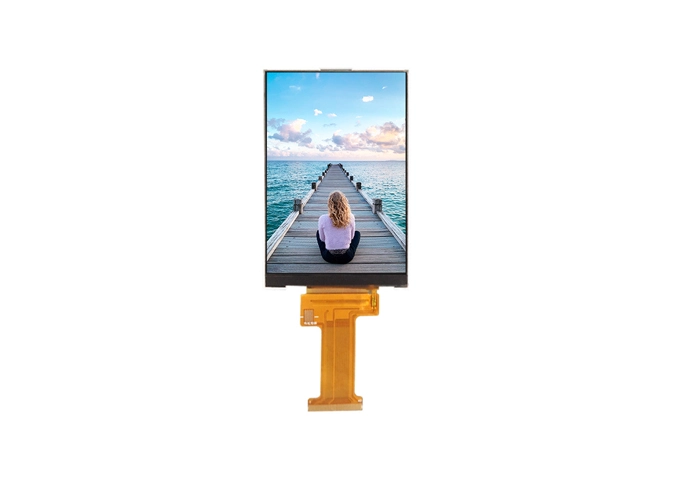

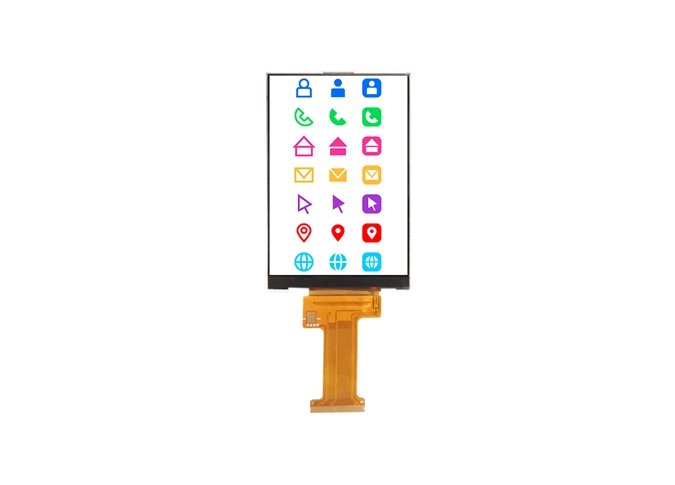

Aperçu de Z35030-P40 3.5 pouces TFT LCD écran 480*800 40PIN SPI RGB Interface ST7701S pilote

1

Z35030-P40 s'agit d'un écran à cristaux liquides (LCD) à transistor à matrice active couleur (TFT) avec une résolution de 480*800. La technique IPS (In-plan Switching) fait que ce module LCD de 3.5 "a un angle de vue plus large. Ce LCDÉcran carré TFTEst intégré ST7701S-G5 pilote IC. Ce module LCD TFT a-Si est doté d'une interface MIPI, d'une luminosité 300 cd/m².

2

Si vous avez des exigences particulières, comme l'interface IC du lecteur, FPC, écran tactile, rétroéclairage, etc., comme unFabricant d'affichage personnalisé, Nous pouvons également personnaliser pour vous.

3

En tant queFournisseur d'affichage LCD carré, Notre usine réalise ISO 9001: 2015 et IATF16949: 2016 système standard de qualité strictement, tous les écrans LCD ont passé ROHS, REACH Certification.

4

L'écran LCD de 3.5 pouces est largement utilisé dans le commutateur intelligent, le tableau de bord est venu, le point de vente, le lecteur de jeu, l'instrument cosmétique, l'appareil électroménager, le scanner QRcode, la température infrarouge, le traducteur, le lecteur de musique, la maison intelligente, industrie portable, extérieur, HMI, etc.

Specifications of Z35030-P40 3.5 Inch TFT LCD Screen 480*800 40PIN SPI+RGB Interface ST7701S Driver


No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.5

inch

2

Display Resolution

480 (H) × RGB × 800 (V)

pixels

3

Pixel Pitch

94.5 (H) × 94.5 (V)

um

4

LCM Outline Dimension

(Without FPC)

50.1 (W) × 85.8 (H) × 2.1 (T)

mm

5

LCD Outline Dimension

48.96 (W) × 83.20 (H) × 1.0 (T)

mm

6

LCD Active Area

45.36 (W) × 75.60 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7701S-G5

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.5% Min: 4.05%

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

14

FPC Version

-

-

15

Interface

RGB+SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/7 Series 1 Parallel (7lights in total)

-

19

Luminance

-

nit

20

Weight

0.017

g


Interface Definition Description of Z35030-P40 3.5 Inch TFT LCD Screen 480*800 40PIN SPI+RGB Interface ST7701S Driver


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3

GNG

Ground

4

VCC

POWER SUPPLY (2.8V/3.3V)

5- 13

GND

Ground

14

VS (VSYNC)

Vertical sync. Signal in RGB I/F.

15

HS(HSYNC)

Horizontal sync. Signal in RGB I/F.

16

DCLK

Dot clock signal for RGB interface operation.

17

DE

Data enable signal for RGB interface operation.

18-22

DB0-DB4

BLUE DATA

23-28

DB5-DB10

GREEN DATA

29-33

DB11-DB15

RED DATA

34

RST

LCM RESET PIN

35

CS

Chip Select input PIN

36

SCL

LCM SPI clock (SCL) clock (SCLK)

37

SDA

LCM SPI data (SDA) data input (MOSI)

38

IOVCC

I/O POWER SUPPLY

39

GND

Ground

40

IOVCC

I/O POWER SUPPLY

RST voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
