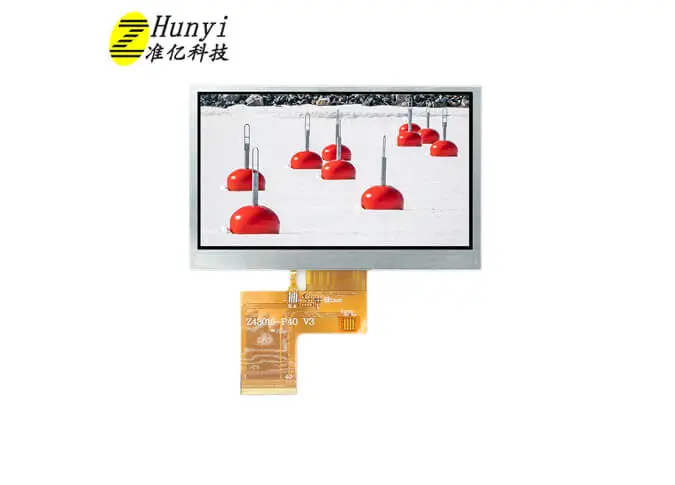

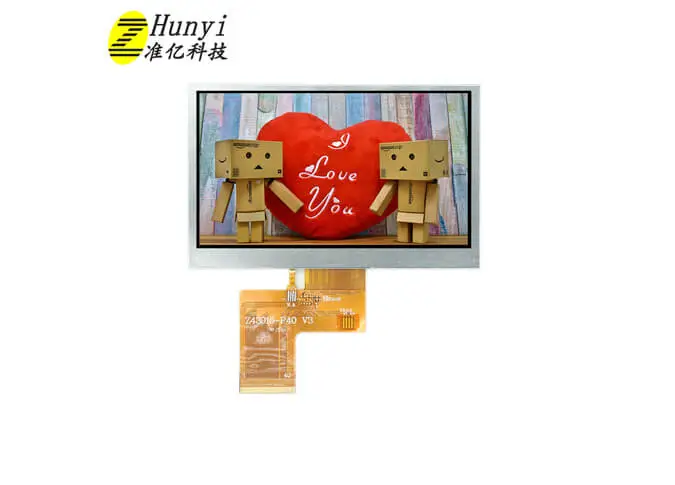

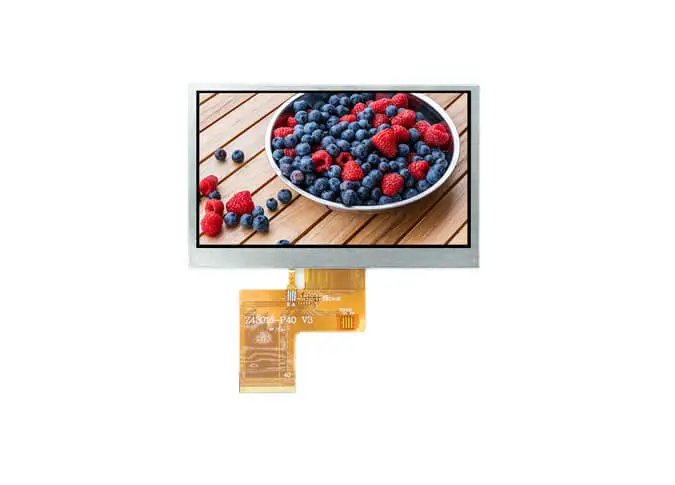

Z43080 4.3 pouces TFT LCD 800*480 résolution 1000 lentes Interface RGB

  • Taille: 4.3 pouce

  • Résolution: 800*480

  • Zone active: 95.04*53.86mm

  • Interface: RGB

  • Angle de vue: IPS

  • Luminosité: 1000 cd/m²

  • Panneau tactile: soutien CTP/RTP

  • Type d'approvisionnement: Usine/fabricant

  • Certification: ISO9001, IATF16949, ROHS, REACH

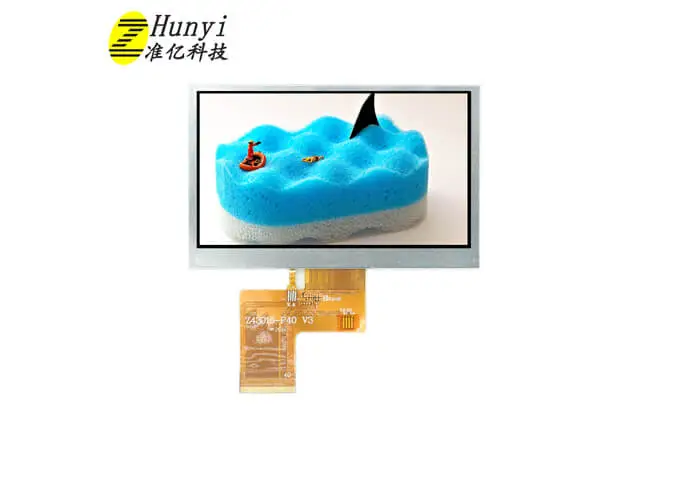

4.3 inch tft display
4.3 inch tft display

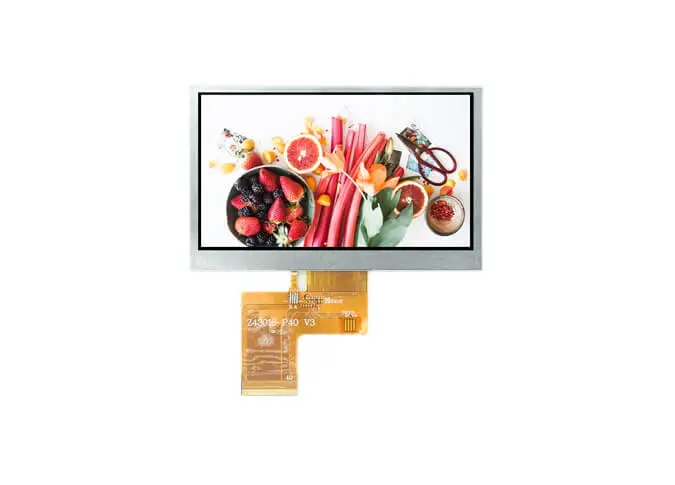

4.3 inch tft lcd display

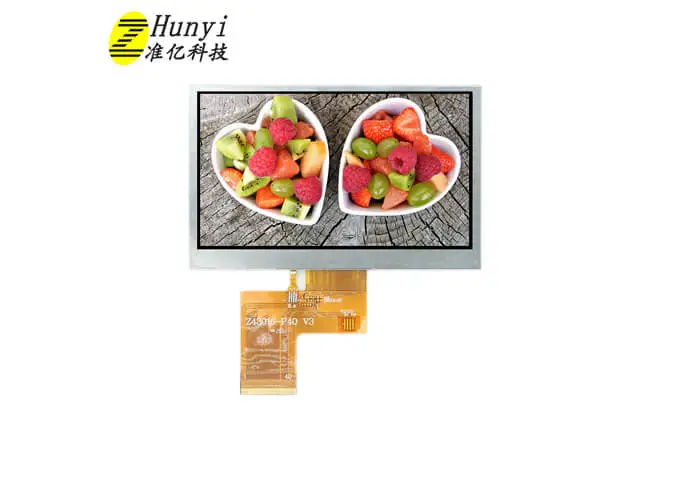

4.3 tft display

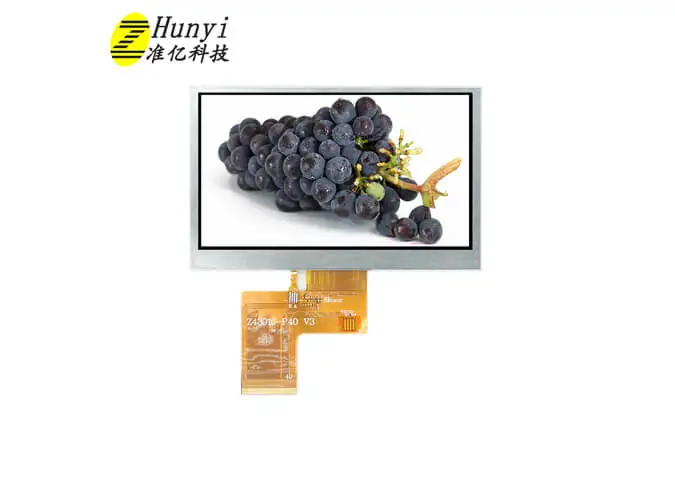

4.3 tft lcd display
4.3 inch tft display wholesale

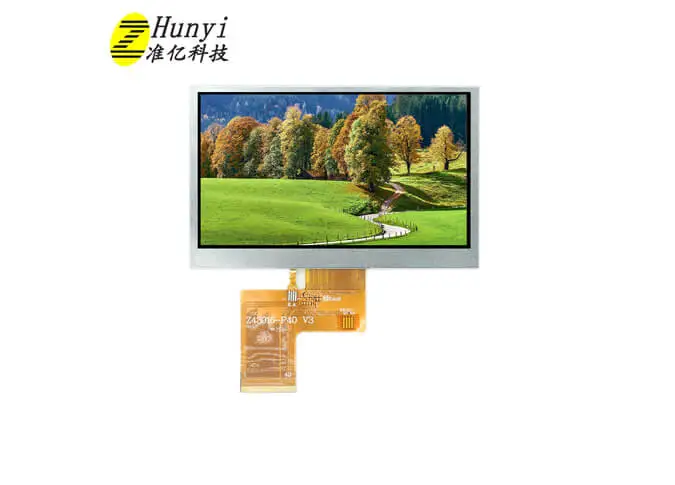

4.3 inch tft lcd display wholesale
4.3 tft display wholesale

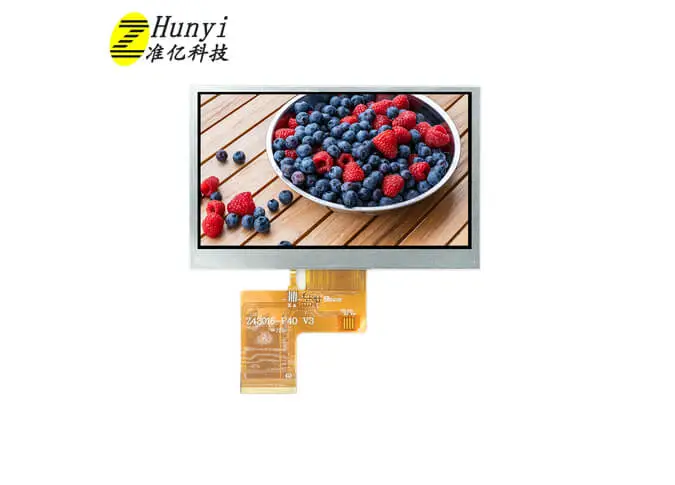

4.3 tft lcd display wholesale
4.3 inch tft display manufacturer

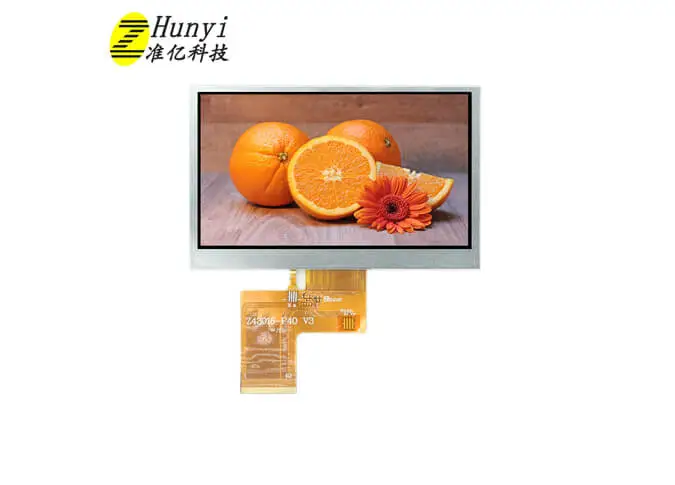

4.3 inch tft lcd display manufacturer

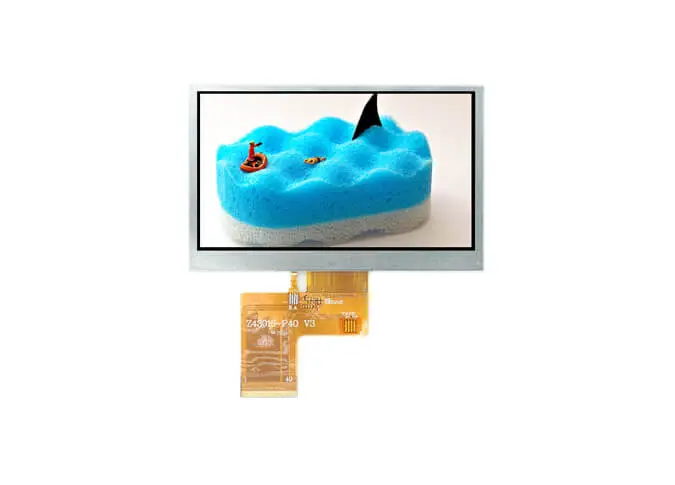

4.3 tft display manufacturer

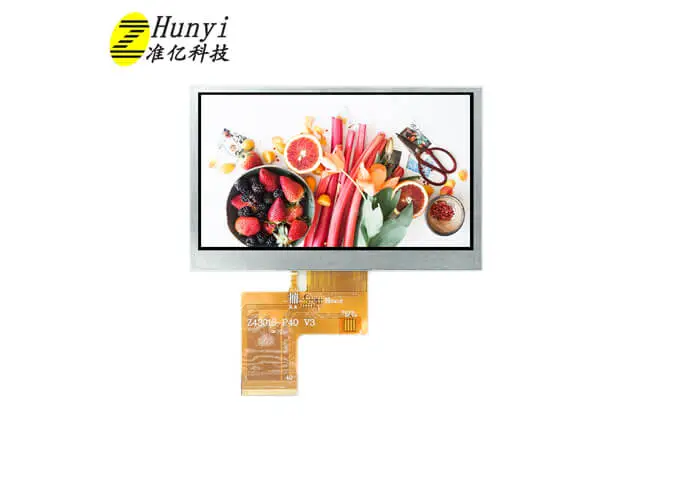

4.3 tft lcd display manufacturer

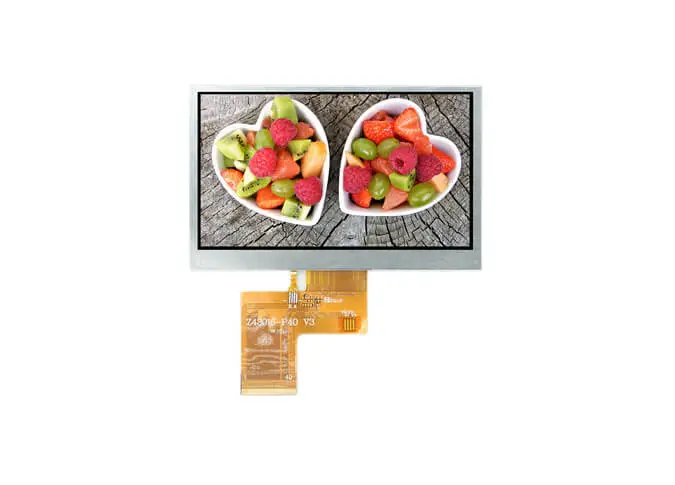

4.3 inch tft display bulk

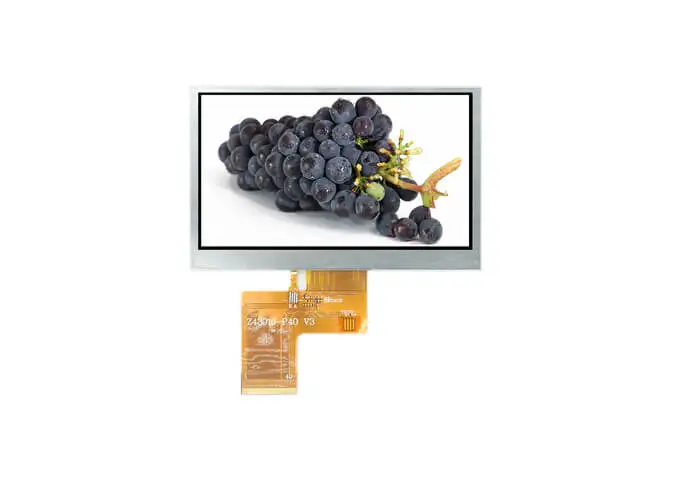

4.3 inch tft lcd display bulk

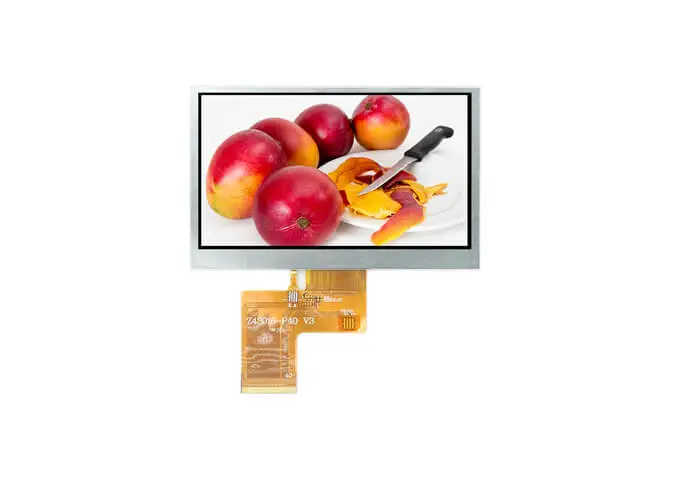

4.3 tft display bulk

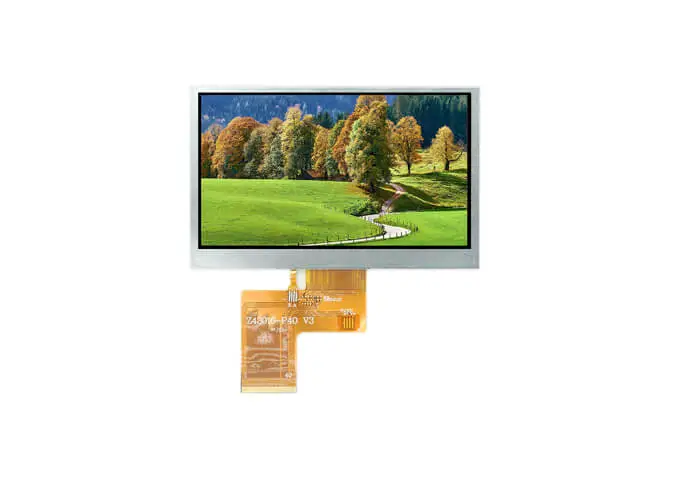

4.3 tft lcd display bulk

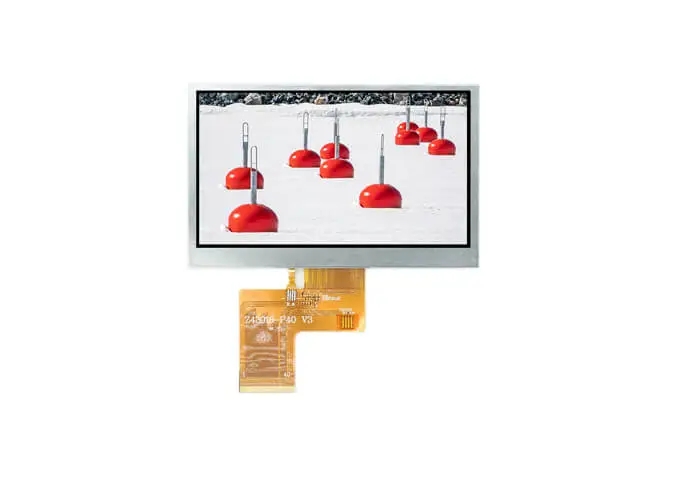

4.3 inch tft display company
4.3 inch tft lcd display company
4.3 tft display company

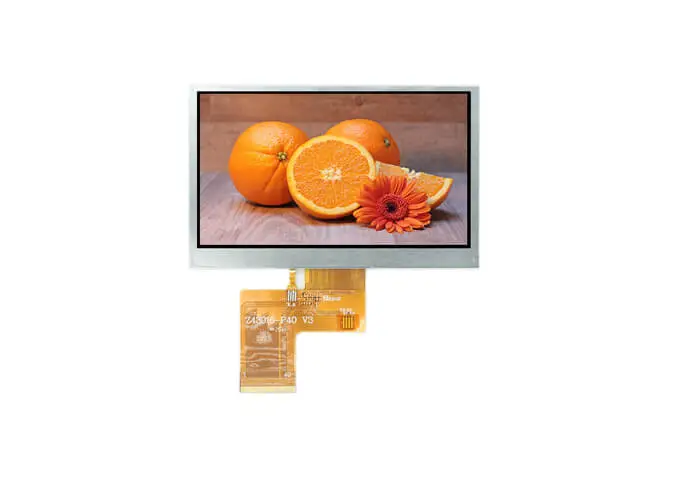

4.3 tft lcd display company

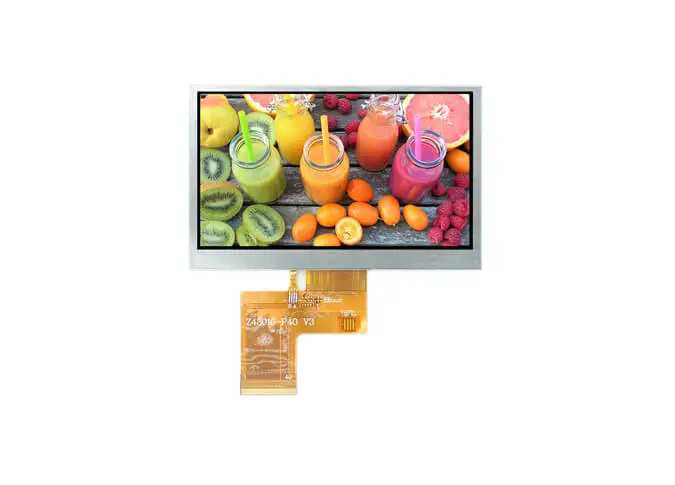

4.3 inch tft is display

Vue d'ensemble de l'écran LCD TFT 4.3 pouces Z43080 800 * Résolution 480 1000nits Interface RGB

1

Z43080 est un écran à cristaux liquides (LCD) à transistor à couche mince à matrice active de couleur (TFT) avec une résolution 480 800 *. La technique IPS (In-plan Switching) fait que ce module LCD de 4.3 "a un angle de vue plus large. Cet écran LCD est intégré ST7262E43 pilote IC. Cet écran LCD a-Si TFTModule amoléViennent avec l'interface RGB, 1000 luminosité cd/m².

2

Si vous avez des exigences spéciales, comme l'interface IC du lecteur, FPC, panneau tactile, rétro-éclairage, etc., nous pouvons fournirModule LCD personnaliséPour vous.

3

En tant queChine LCD module fabricant, Notre usine réalise ISO 9001: 2015 et IATF16949: 2016 système standard de qualité strictement, tous les écrans LCD ont passé ROHS, REACH Certification.

4

L'écran LCD horizontal de 4.3 pouces est largement utilisé dans la sonnette visuelle, le portefeuille électronique, le point de vente, le joueur de jeu, l'instrument cosmétique, l'appareil électroménager, le scanner QRcode, la maison intelligente, l'industrie portable, l'extérieur, HMI, E-bike, véhicule électrique, tableau de bord, compteur de vitesse, etc.

Specifications of 4.3 Inch TFT LCD Display 800*480 Resolution 1000nits RGB Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

4.3

inch

2

Display Resolution

800 (H) × RGB × 480 (V)

pixels

3

Pixel Pitch

198 (H) × 198 (V)

um

4

LCM Outline Dimension

(Without FPC)

105.40 (W) × 67.10 (H) ×3.0 (T)

mm

6

LCD Active Area

95.04 (W) × 53.86 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7262E43

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

14

FPC Version

-

-

15

Interface

RGB

-

16

Operating Temperature

-30°C~ 80°C

-

17

Storage Temperature

-30°C~ 85°C

-

18

Backlight Arrangement

LED/5 Series 3 Parallel (15 lights in total)

-

19

Luminance

Typ.: 1000

nit

20

Weight

TBD

kg


Interface Definition Description of 4.3 Inch TFT LCD Display 800*480 Resolution 1000nits RGB Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDK

Cathode of LED backlight

2

LEDA

Anode of LED backlight

3

GND

Power ground

4

VCC

Power voltage

5-12

R0-R7

RED DATA BUS

13-20

G0-G7

GREEN DATA BUS

21-28

B0-B7

BLUE DATA BUS

29

GND

Power ground

30

CLK

Pixel clock

31

DISP

Display on/off

32

HSYNC

Horizontal sync signal

33

VSYNC

Vertical sync signal

34

DEN

Data enable

35

HDIR

UP/Down sequence control of source driver.

36

VDIR

Right/Left sequence control of source driver.

37-40

NC

NO connect

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.

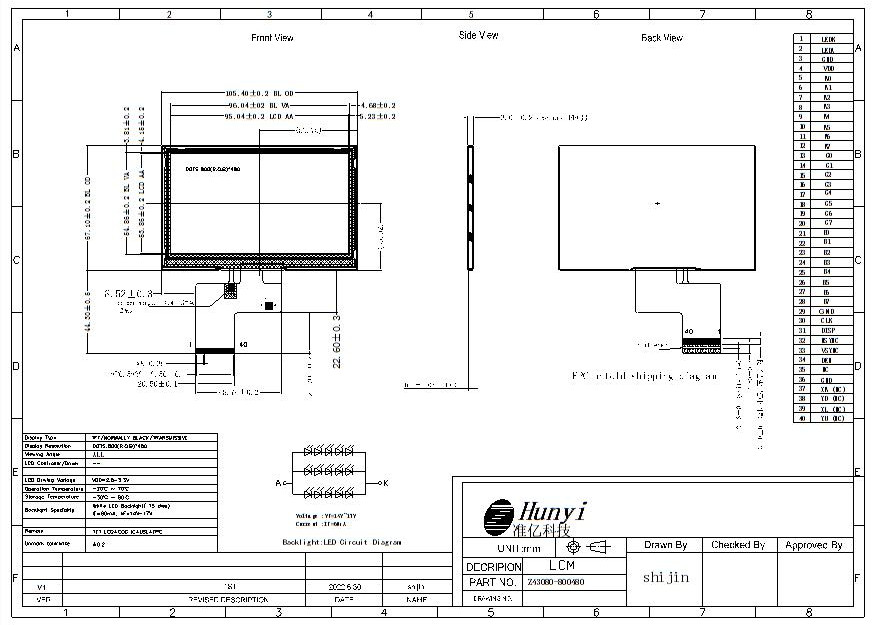

Mechanical Drawing of 4.3 Inch TFT LCD Display 800*480 Resolution 1000nits RGB Interface


Mechanical Drawing of 4.3 Inch TFT LCD Display 800*480 Resolution 1000nits RGB Interface
