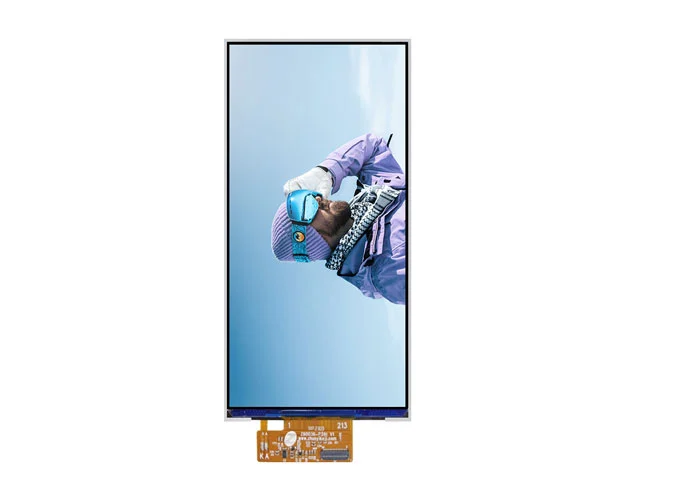

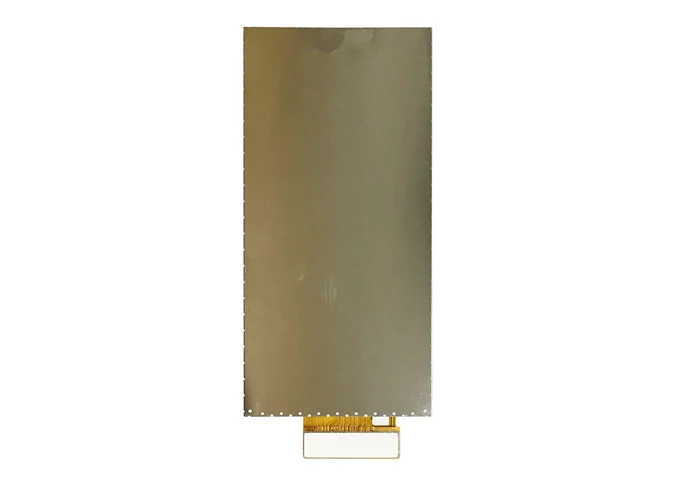

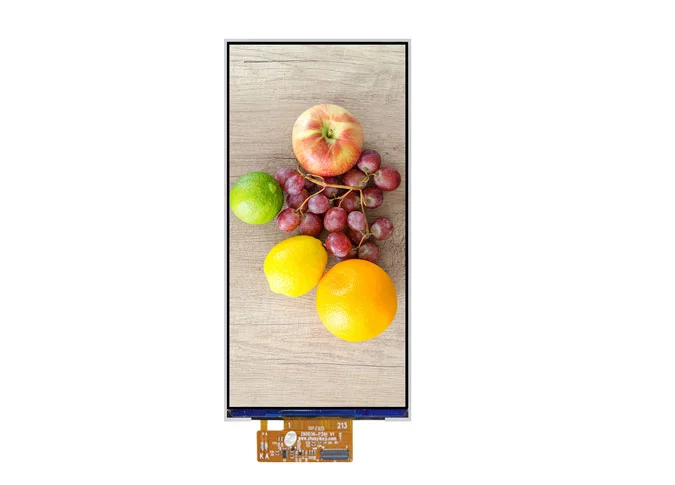

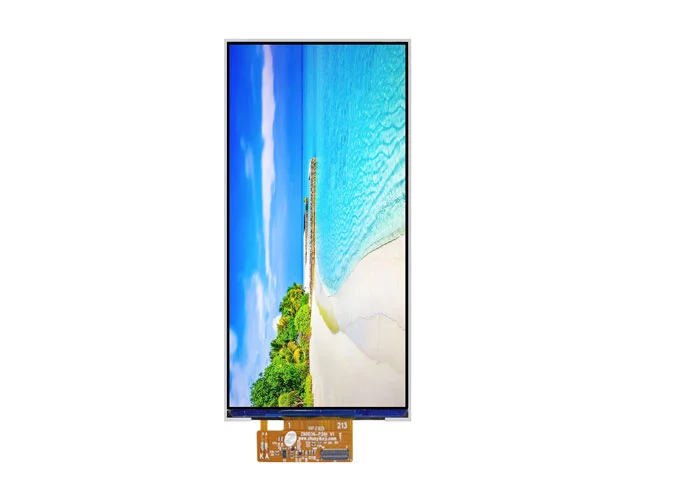

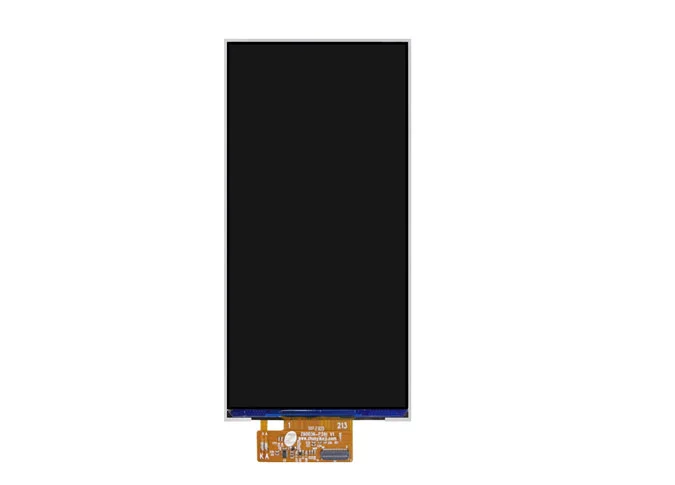

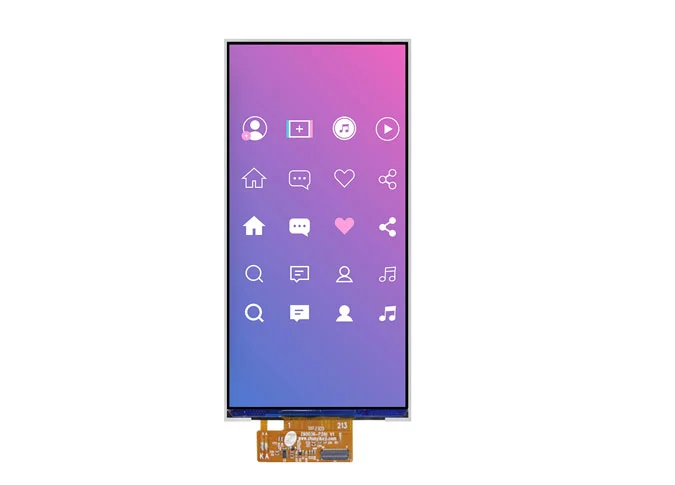

Z60036 6 pouces 720*1480 panneau LCD TFT 720 * interface MIPI 1480 résolution

1

Display Size (Diagonal)

5.99

inch

2

Display Resolution

720(H） × RGB × 1480（V）

pixels

3

Pixel Pitch

92.7(H）× 92.7（V）

um

4

LCM Outline Dimension

(Without FPC）

70.8 (W) ×145.5 (H) ×2.25 (T)

mm

5

LCD Outline Dimension

68.8 (W) × 143 (H) × 0.4 (T)

mm

6

LCD Active Area

66.744（W） ×137.196（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD9365DA-H3

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 3.8%  Min:3.55%

-

13

LCD Contrast Ratio

Typ.: 1200  Min:900

-

14

FPC Version

Z60036-P31H V1

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/4 Series 4 Parallel (16 lights in total)

-

19

Luminance

Typ.:330

nit

20

Weight

0.033

kg

1-3

LEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

4

NC

No Connection

5-8

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

9-10

GND

Ground

11

D2P

Positive MIPI differential data input

12

D2N

Negative MIPI differential data input

13

GND

Ground

14

D1P

Positive MIPI differential data input

15

D1N

Negative MIPI differential data input

16

GND

Ground

17

CLKP

Positive MIPI differential CLOCK input

18

CLKN

Negative MIPI differential CLOCK input

19

GND

Ground

20

D0P

Positive MIPI differential data input

21

D0N

Negative MIPI differential data input

22

GND

Ground

23

D3P

Positive MIPI differential data input

24

D3N

Negative MIPI differential data input

25

GND

Ground

26

IOVCC

I/O  POWER SUPPLY

27

RESET

LCM  RESET  PIN

28

GND

Ground

29

IOVCC

I/O  POWER SUPPLY

30-31

VDD

POWER SUPPLY

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
