Z70070 Écran LCD TFT 7 pouces 1024*600 30PIN MIPI Interface EK79007AD3 EK73217BCGA Pilote

  • Taille: 7 pouce

  • Résolution: 1024*600

  • Zone active: 149.76*93.6mm

  • Interface: MIPI

  • Angle de vue: IPS

  • Luminosité: 500 cd/m²

  • Panneau tactile: soutien CTP/RTP

  • Type d'approvisionnement: Usine/fabricant

  • Certification: ISO9001, IATF16949, ROHS, REACH

7 inch tft lcd screen
7 inch tft lcd screen
7 inch 1024 600 lcd screen
7 inch 1024 600 tft screen
7 tft lcd screen
7 tft screen
led lcd vs ips
led tft vs ips
pls lcd vs ips lcd
pls tft display vs ips
pls tft lcd vs ips lcd
tablet tft vs ips
tablet ips vs tft
screen tft vs ips
pls tft vs ips lcd which is better
pls tft vs ips lcd
pls tft lcd vs ips lcd which is better
tft and ips display
tft and ips display difference
tft and ips lcd which is better
tft display vs ips
tft display vs ips display
tft display vs ips display which is better

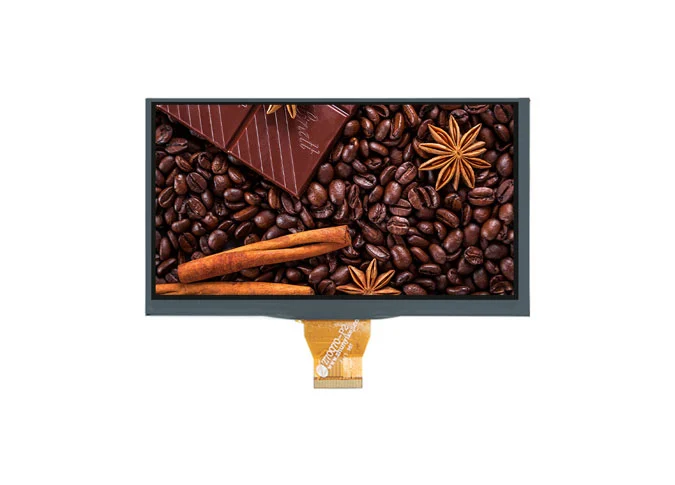

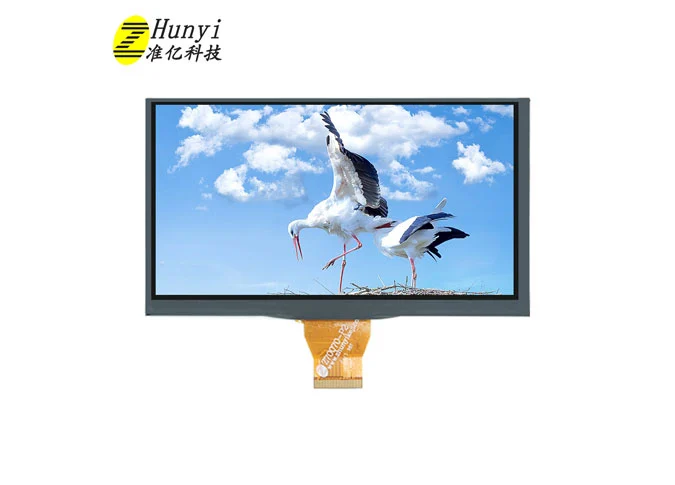

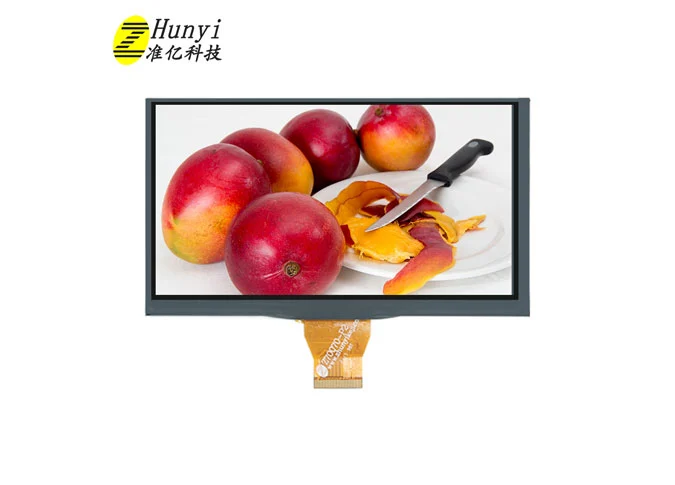

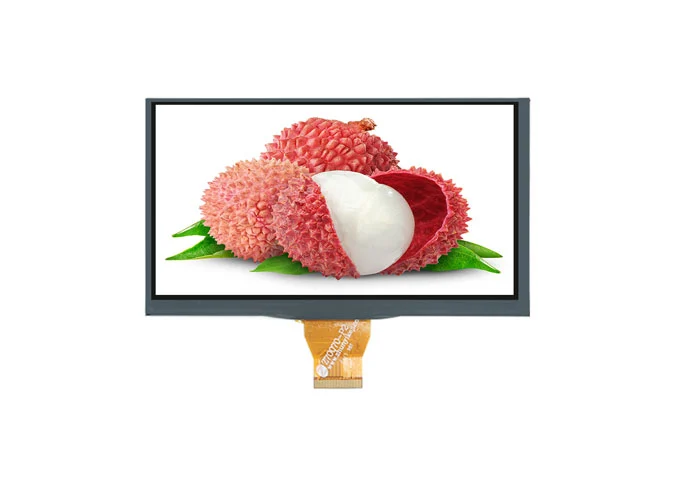

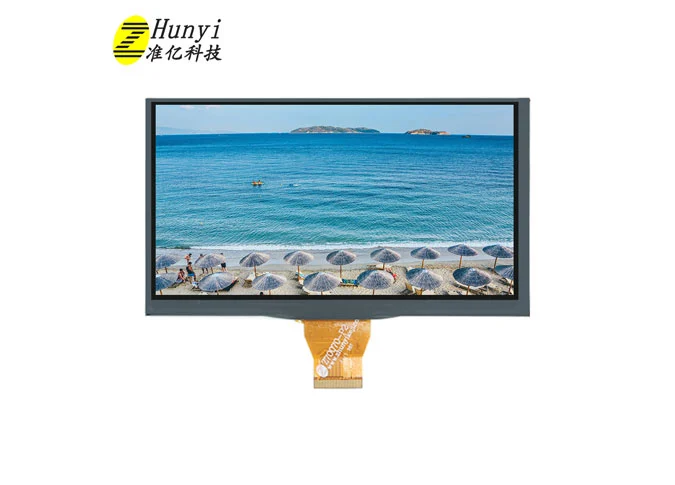

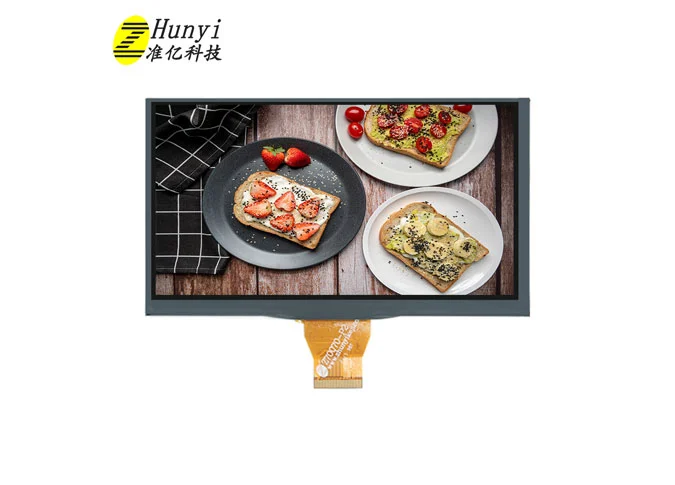

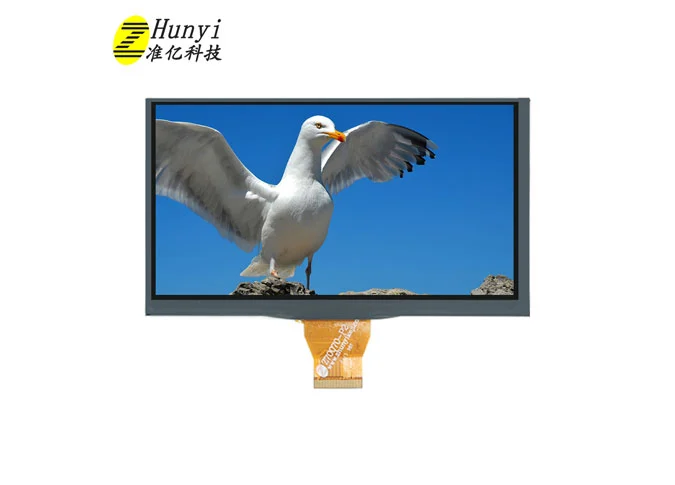

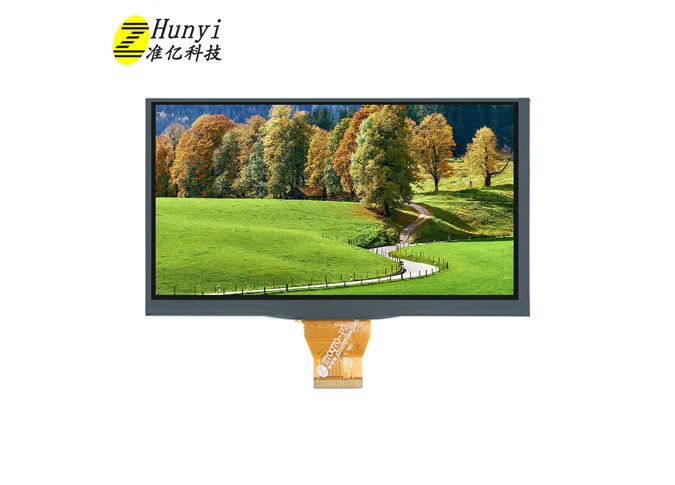

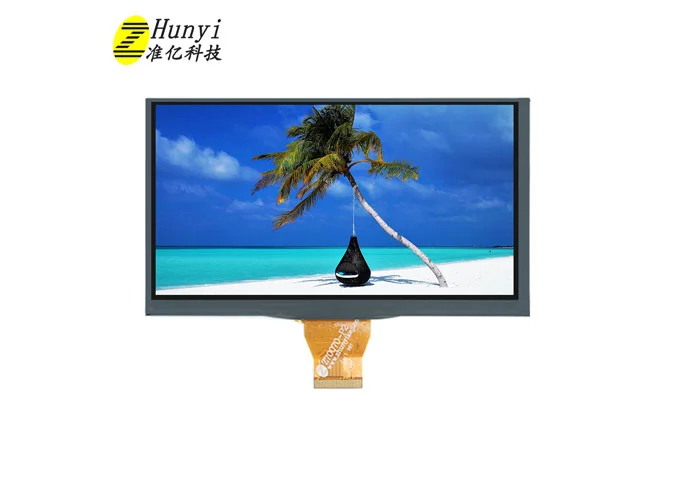

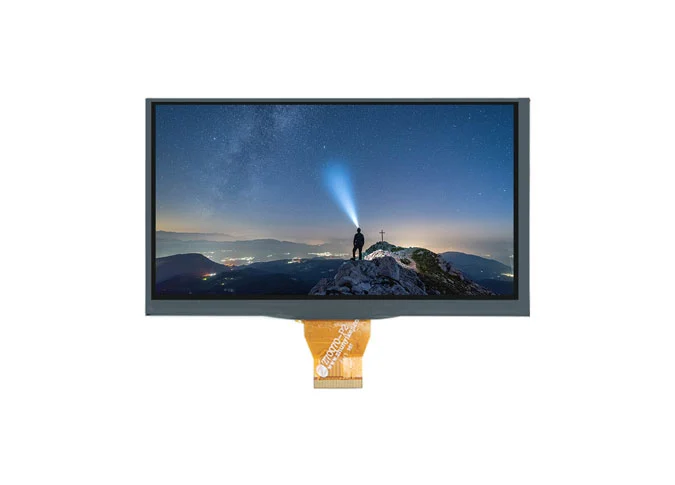

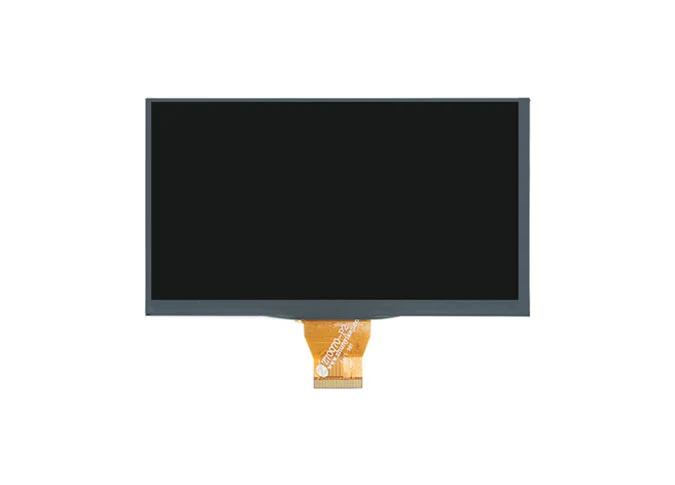

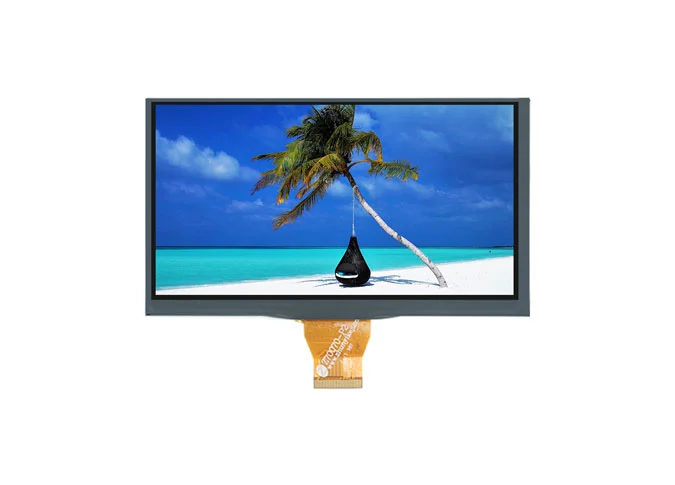

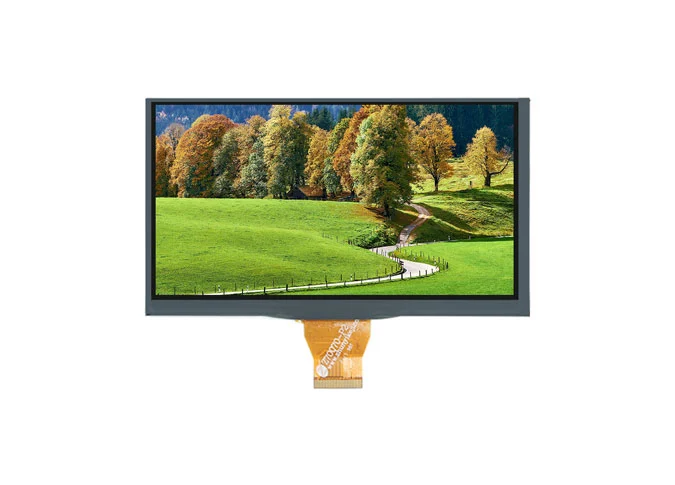

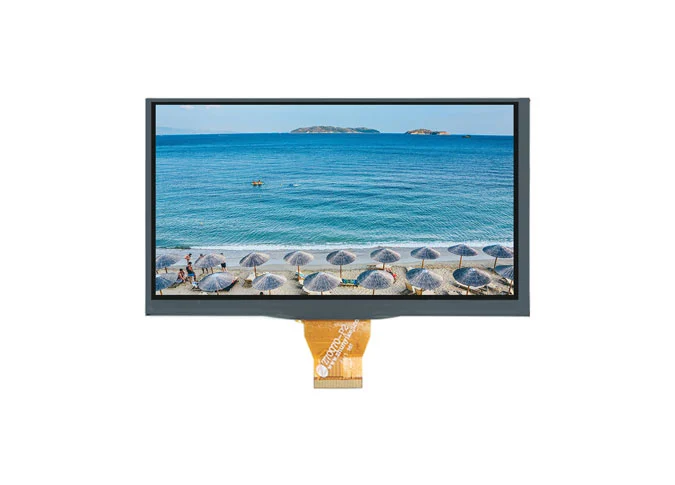

Aperçu de l'écran LCD TFT 7 pouces Z70070 1024*600 30PIN MIPI Interface EK79007AD3 EK73217BCGA

1

Z70070 est un écran à cristaux liquides (LCD) à transistor à couche mince à matrice active de couleur (TFT) avec une résolution 800 1280 *. La technique IPS (In-plan Switching) fait de ce module LCD 7 "un angle de vue plus large. Cet écran LCD est intégré au pilote EK79007AD3 EK73217BCGA IC. Cet écran LCD a-Si TFTModule LCD TFT carréViennent avec l'interface LVDS 500cd/m² luminosité.

2

Si vous avez des exigences particulières, telles que le lecteur IC, l'interface, le FPC, le panneau tactile, la luminosité, la couleur, le rétroéclairage, etc, en tant queFabricant d'affichage LCD personnalisé Chine, Nous pouvons également personnaliser pour vous.

3

En tant que professionnelModule d'affichage LCD usine, Notre usine réalise ISO 9001: 2015 et IATF16949: 2016 système standard de qualité strictement, tous les écrans LCD ont passé ROHS, REACH Certification.

4

L'écran LCD horizontal de 7 pouces est largement utilisé en médecine, sonnette visuelle, distributeur automatique, mechine d'apprentissage, ventilateur, oscilloscope, cuisine, appareil ménager, scanner QRcode, maison intelligente, industrie, portable, extérieur, HMI, E-vélo, véhicule, projecteur, imprimante 3D, appareil audio, robot, échelle électrique, Navigation, publicité d'ascenseur, etc.

Specifications of 7 Inch TFT LCD Screen 1024*600 30PIN MIPI Interface EK79007AD3+EK73217BCGA Driver


No.

Item

Specification

Unit

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

1024 (H) × RGB × 600 (V)

pixels

3

Pixel Pitch

50.2 (H) × 143.2 (V)

um

4

LCM Outline Dimension

(Without FPC)

163.7 (W) × 96.9 (H) × 2.55 (T)

mm

5

LCD Outline Dimension

162.2 (W) × 93.28 (H) × 1.30 (T)

mm

6

LCD Active Area

154.21 (W) × 85.92 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

EK79007AD3+EK73217BCGA

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

TBD

-

13

LCD Contrast Ratio

TBD

-

14

FPC Version

Z70070-P2 V1

-

15

Interface

MIPI

-

16

Operating Temperature

-0°C~ 50°C

-

17

Storage Temperature

-20°C~ 60°C

-

18

Backlight Arrangement

LED/3 Series 8 Parallel (24 lights in total)

-

19

Luminance

TBD

nit

20

Weight

TBD

kg


Interface Definition Description of 7 Inch TFT LCD Screen 1024*600 30PIN MIPI Interface EK79007AD3+EK73217BCGA Driver


PIN NO.

PIN DEF.

FUNCTION DESC.

1

VCOM

Common Voltage

2-3

VDD

POWER SUPPLY

4

GND

Ground

5

NC

No Connection

6

STBYB

LCM Standby Mode PIN

7

GND

Ground

8

NIND0

Negative MIPI differential data input

9

PIND0

Positive MIPI differential data input

10

GND

Ground

11

NIND1

Negative MIPI differential data input

12

PIND1

Positive MIPI differential data input

13

GND

Ground

14

NINC

Negative MIPI differential CLOCK input

15

PINC

Positive MIPI differential CLOCK input

16

GND

Ground

17

NIND2

Negative MIPI differential data input

18

PIND2

Positive MIPI differential data input

19

GND

Ground

20

NIND3

Negative MIPI differential data input

21

PIND3

Positive MIPI differential data input

22

GND

Ground

23-24

NC

No Connection

25

GND

Ground

26-28

NC

No Connection

29

GND

Ground

30-31

LEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

32-33

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

34

GND

Ground

35

SHLR

Source right or left sequence control PIN

36

UPDN

Gate up or down scan control PIN

37

VGH

TFT Gate ON Voltage

38

VGL

TFT Gate OFF Voltage

39

AVDD

Power For Analog Circuit

40

RESET

LCM RESET PIN

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.


Mechanical Drawing of 7 Inch TFT LCD Screen 1024*600 30PIN MIPI Interface EK79007AD3+EK73217BCGA Driver


Mechanical Drawing of 7 Inch TFT LCD Screen 1024*600 30PIN MIPI Interface EK79007AD3+EK73217BCGA Driver
