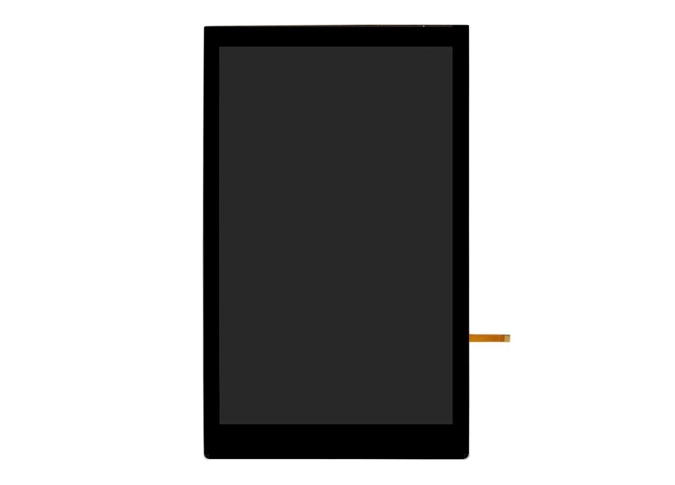

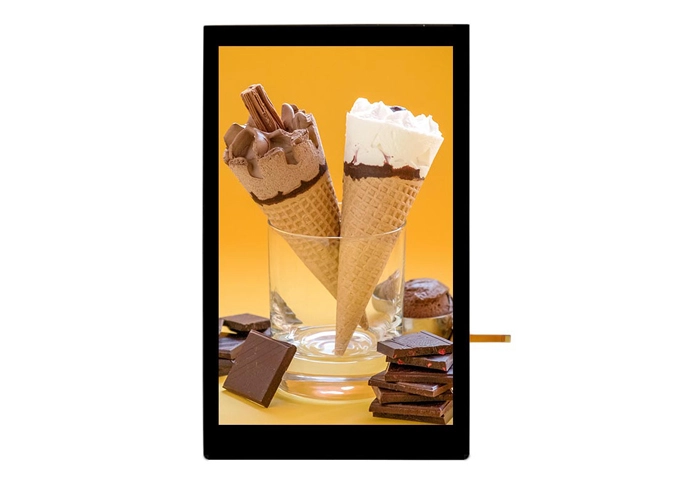

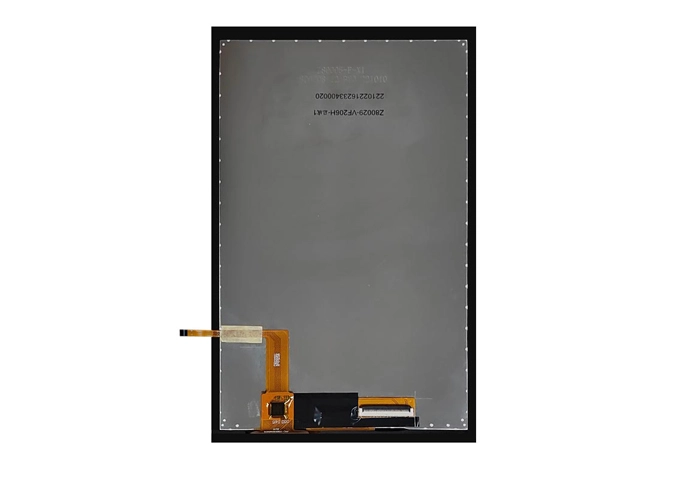

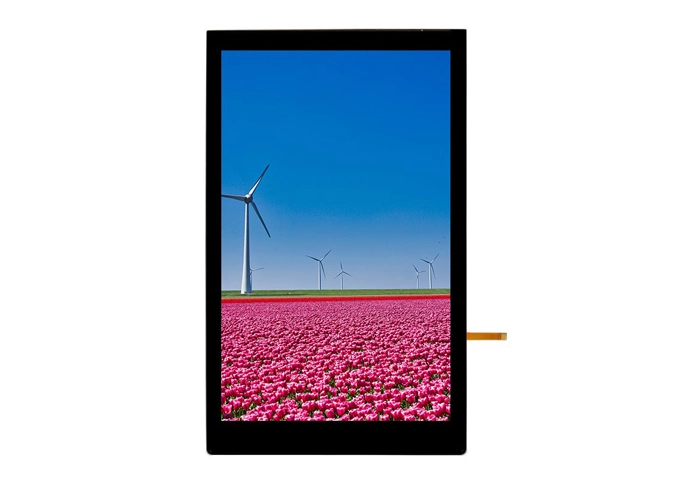

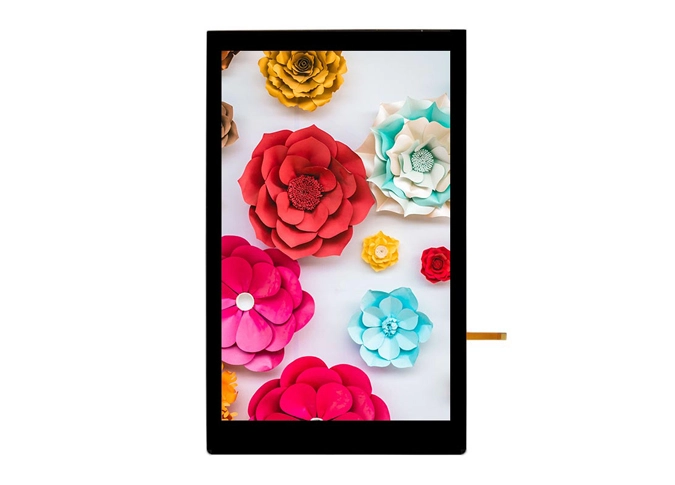

Z80029-ZC 800*1280 8 pouces écran tactile multi-point d'interface MIPI I2C d'interface IPS Angle de vue

1

Display Size (Diagonal)

8.0

inch

2

Display Resolution

800(H） × RGB × 1280（V）

pixels

3

Pixel Pitch

44.85(H）× 134.55（V）

um

4

LCM Outline Dimension

(Without FPC）

114.66 (W) ×184.16 (H) ×2.65 (T)

mm

5

LCD Outline Dimension

111.24 (W) × 177.717 (H) × 0.8 (T)

mm

6

TLCM Outline Dimension

(Without FPC）

121.84 (W) ×198.34 (H) ×3.87 (T)

mm

7

LCD Active Area

107.64（W） ×172.224（H）

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

JD9365DA-H3

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

Typ.: 5.21%  Min:4.43%

-

14

LCD Contrast Ratio

Typ.: 1500  Min:1200

-

15

FPC Version

Z80022-RD2109H V2

-

16

Interface

MIPI

-

17

TP  Interface

I2C

-

18

Operating Temperature

-20°C~ 70°C

-

19

Storage Temperature

-30°C~ 80°C

-

20

Backlight Arrangement

LED/4 Series 7 Parallel (28 lights in total)

-

21

Luminance

620

nit

22

Weight

0.183

kg

1

RESET

LCM  RESET  PIN

2-3

VDD

POWER SUPPLY

4-6

NC

No Connection

7

GND

Ground

8

MIPI_D0N

Negative MIPI differential data input

9

MIPI_D0P

Positive MIPI differential data input

10

GND

Ground

11

MIPI_D1N

Negative MIPI differential data input

12

MIPI_D1P

Positive MIPI differential data input

13

GND

Ground

14

MIPI_CLKN

Negative MIPI differential CLOCK input

15

MIPI_CLKP

Positive MIPI differential CLOCK input

16

GND

Ground

17

MIPI_D2N

Negative MIPI differential data input

18

MIPI_D2P

Positive MIPI differential data input

19

GND

Ground

20

MIPI_D3N

Negative MIPI differential data input

21

MIPI_D3P

Positive MIPI differential data input

22

GND

Ground

23-34

NC

No Connection

25

GND

Ground

26-29

NC

No Connection

30

GND

Ground

31-32

VLEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

33-37

NC

No Connection

38

ID

LCM  ID  PIN

39-40

VLEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.

1

GND

Ground

2

TP_RESET

TP  Reset  PIN(3.3V)

3

TP_SDA

TP  I2C data (SDA) data input (MOSI)(3.3V)

4

TP_SCL

TP  I2C clock (SCL) clock (SCLK)(3.3V)

5

TP_INT

TP  Interrupt  PIN(3.3V)

6

TP_VDD

TP Input Power voltage(3.3V)
