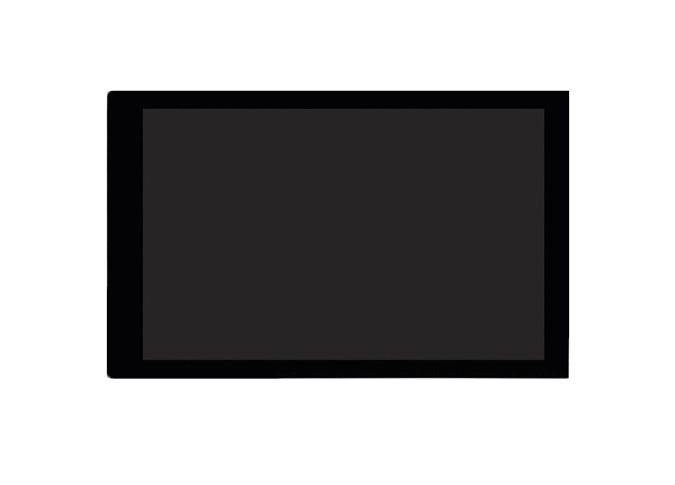

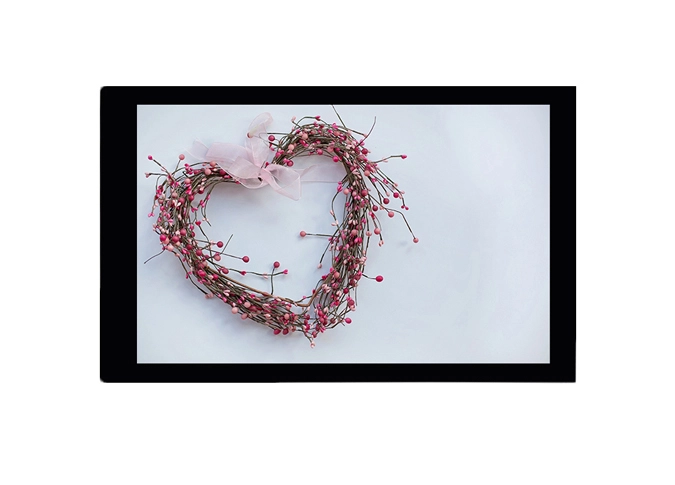

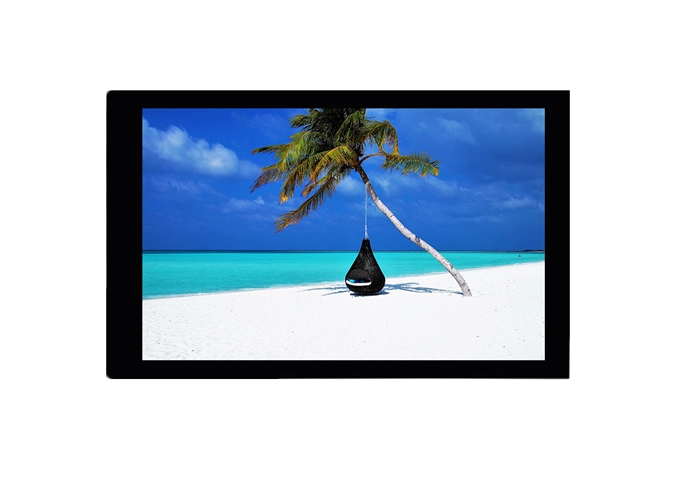

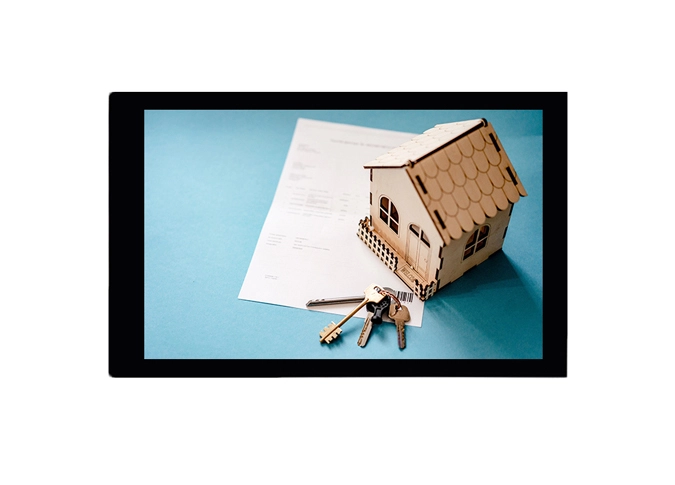

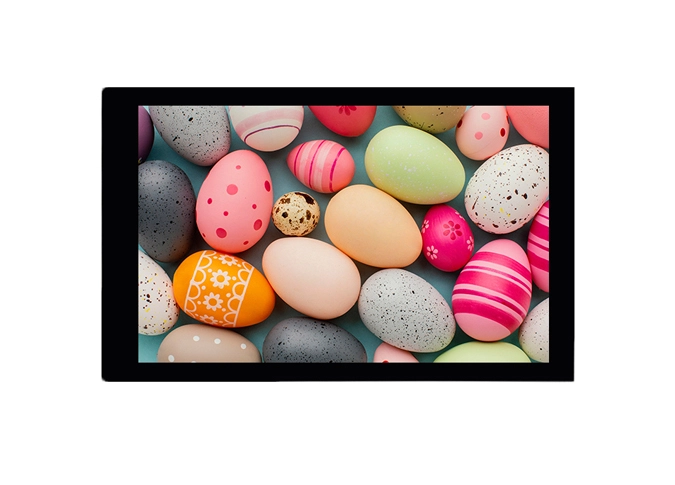

Z80033-ZC 8 pouces LCD écran tactile 800*1280 GT911 I2C interface panneau multi-touch

1

Display Size (Diagonal)

8.0

inch

2

Display Resolution

800(H）× RGB × 1280（V）

pixels

3

Pixel Pitch

44.85(H）× 134.55（V）

um

4

LCM Outline Dimension

(Without FPC）

114.66 (W) ×184.16 (H) ×2.61 (T)

mm

5

LCD Outline Dimension

112.64(W) × 181.82 (H) × 0.8 (T)

mm

6

LCD Active Area

107.64（W）×172.22（H）

mm

7

TLCM Outline Dimension

121.84 (W) ×198.34 (H) ×4.26 (T)

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

ILI9881C-04

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

Typ.: 4.8%

-

14

LCD Contrast Ratio

Typ.: 1200  Min:900

-

15

FPC Version

Z80026-X50H-V1

-

16

Interface

MIPI

-

17

Operating Temperature

-20°C~ 70°C

-

18

Storage Temperature

-30°C~ 80°C

-

19

Backlight Arrangement

LED/3 Series 7 Parallel (21 lights in total)

-

20

Luminance

400

nit

21

Weight

0.197

kg

1-3

LEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

4

NC

No Connection

5-8

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

9-10

GND

Ground

11

D2P

Positive MIPI differential data input

12

D2N

Negative MIPI differential data input

13

GND

Ground

14

D1P

Positive MIPI differential data input

15

D1N

Negative MIPI differential data input

16

GND

Ground

17

CLKP

Positive MIPI differential CLOCK input

18

CLKN

Negative MIPI differential CLOCK input

19

GND

Ground

20

D0P

Positive MIPI differential data input

21

D0N

Negative MIPI differential data input

22

GND

Ground

23

D3P

Positive MIPI differential data input

24

D3N

Negative MIPI differential data input

25

GND

Ground

26

TE

Tearing  EFFECT  PIN

27

RESET

LCM  RESET  PIN

28

ID

LCM  ID  PIN

29

IOVCC

I/O POWER SUPPLY（1.8V）

30-31

VDD

POWER SUPPLY（3.3V）

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.

1

GND

Ground

2

TP_RESET

TP  Reset  PIN(3.3V)

3

TP_SDA

TP  I2C data (SDA) data input (MOSI)(3.3V)

4

TP_SCL

TP  I2C clock (SCL) clock (SCLK)(3.3V)

5

TP_INT

TP  Interrupt  PIN(3.3V)

6

TP_VDD

TP Input Power voltage(3.3V)
