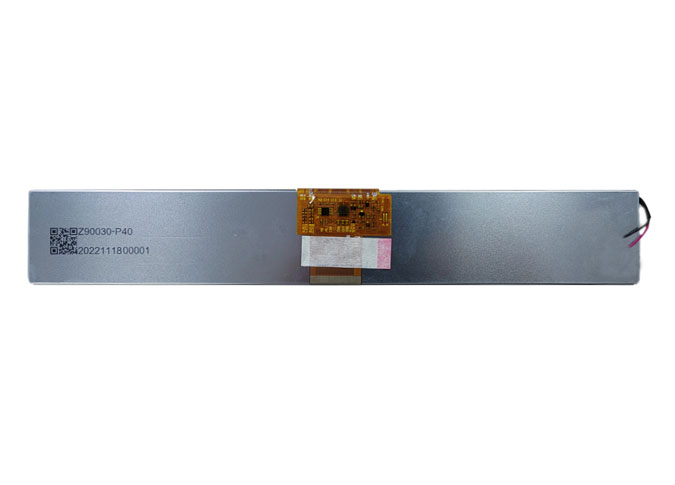

Z90030 Panneau LCD horizontal de 9 pouces 1024*105 Interface RGB 550 Nits

1

Display Size (Diagonal)

9.0

inch

2

Display Resolution

1024 (H) × RGB × 105 (V)

pixels

3

Pixel Pitch

225 (H) × 225 (V）

um

4

LCM Outline Dimension

(Without FPC）

240.08 (W) × 37.8 (H) × 4.3 (T)

mm

5

LCD Active Area

230.4 (W) × 23.62 (H）

mm

6

View Direction (Gray Inversion)

12 o'clock

-

7

Driver IC

/

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal White

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

/

-

12

LCD Contrast Ratio

Typ.: 400 Min: 300

-

13

FPC Version

Z90030-P40 V1

-

14

Interface

RGB

-

15

Operating Temperature

-20°C~ 80°C

-

16

Storage Temperature

-30°C~ 85°C

-

17

Backlight Arrangement

LED/8 Series 3 Parallel (24 lights in total)

-

18

Luminance

Typ.: 400

nit

19

Weight

0.080

kg

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3

GND

Ground

4

VDD

POWER SUPPLY (3.3V）

5-12

R0-R7

RED DATA

13-20

G0-G7

GREEN DATA

21-28

B0-B7

BLUE DATA

29

GND

Ground

30

PCLK

Clock input

31

DISP

Display on/off

32

HSYNC

Horizontal sync. Signal in RGB I/F.

33

VSYNC

Vertical sync. Signal in RGB I/F.

34

DE

Data enable signal in RGB I/F DE mode.

35

NC

No connection

36

GND

Ground

37-40

NC

No connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
