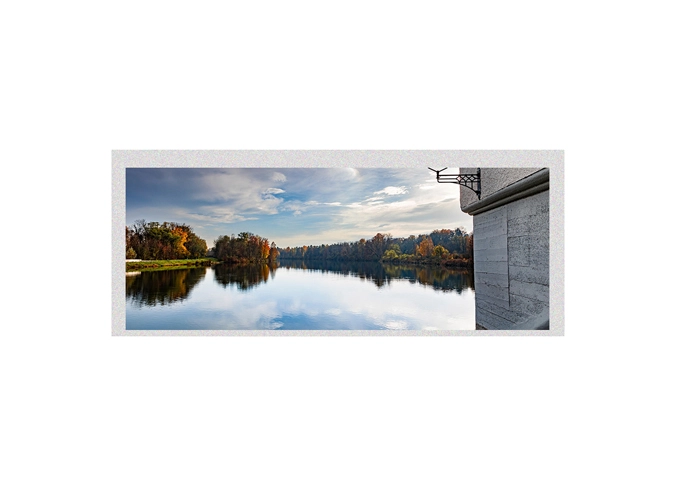

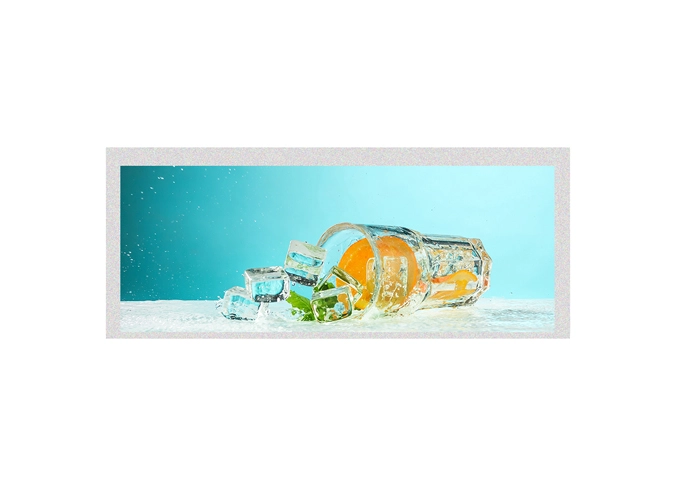

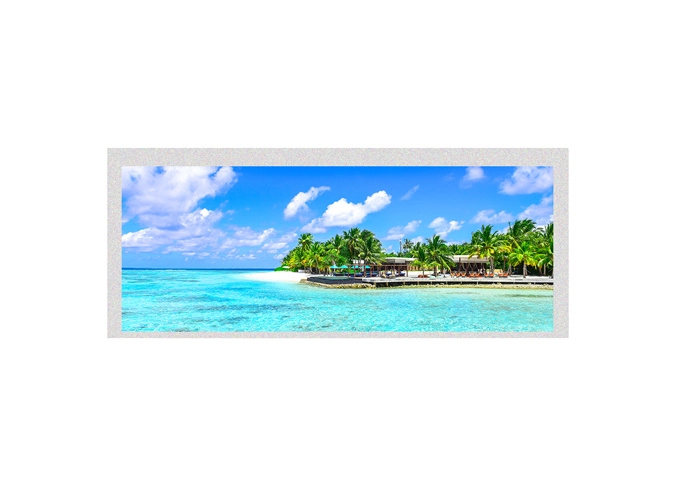

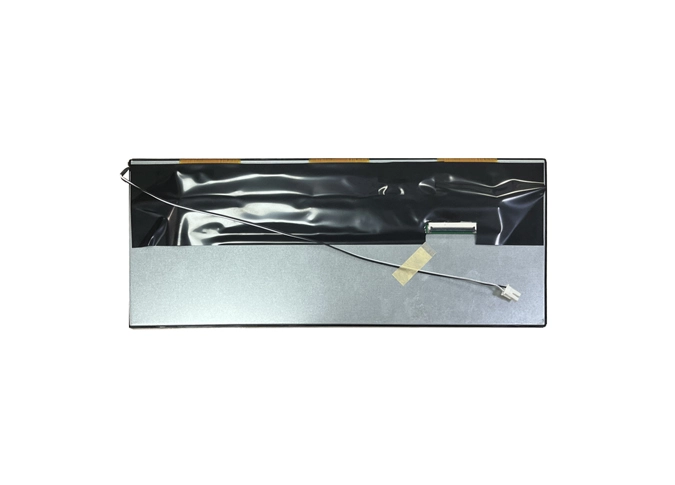

Z103002 barre étirée type 10.25 pouces panneau LCD ultra large 1920*720 support HDMI Android

  • Taille: 10.25"

  • Résolution: 1920*720

  • Interface:LVDS

  • Type d'approvisionnement: Usine/fabricant

  • Certification:ISO9001,IATF16949,ROHS,REACH

ips display
ips display
ips display module
ips display panel
ips lcd display
ips lcd display module

Vue d'ensemble de la barre étirée Z103002 10.25 pouces ultra large panneau LCD 1920*720 support HDMI Android

4

L'écran LCD de 10.25 "est largement utilisé sur l'affichage numérique, l'affichage de l'information, le tableau de menu, le tableau de bord, la salle de conférence, les jeux, la publicité, le kiosque, l'audio, la VR, la RA, le POS, le médical, HMI, navigation, éducation etc.

1

Z103002 est un écran à cristaux liquides (LCD) à transistor à couche mince à matrice active de couleur (TFT) avec une résolution 720 1920 *. La technique IPS(In-plan Switching) permet à ce module LCD de 10.25 "d'avoir un angle de vue plus large. Cet écran TFT a-Si est fourni avec l'interface LVDS.

2

Si vous avez des exigences spéciales, comme le pilote IC, l'interface, le FPC, le panneau tactile, le rétroéclairage, etc, nous pouvons également personnaliser pour vous.

3

Notre usine réalise ISO 9001:2015 et IATF16949: 2016 système standard de qualité strictement, tous les écrans LCD ont passé ROHS, REACH Certification.

General Specifications Z103002 Stretched Bar Type 10.25 Inch Ultra Wide LCD Panel 1920*720 Support HDMI Android


NO.

Item

Specification

1

Display  resolution  (pixel)

1920*RGB*720

2

Active area (mm)

243.648mm x 91.368mm

3

Screen  size (inch)

10.25

4

Pixel pitc    (mm)

0.1269mm x 0.1269mm

5

Outline Dimension  (mm)

265.2mm x 109.2mm x 9.35mm

6

Weight (g)

110g

7

Surface treatment

HC/HC

8

Interface

LVDS

9

Shipment

FOG

10

Contrast ratio

1100

11

Response Time

20ms

12

Transmittance

2.4%



Interface Pin Connection Z103002 Stretched Bar Type 10.25 Inch Ultra Wide LCD Panel 1920*720 Support HDMI Android


Pin NO.

Symbol

I/O

Description

Note

1

GND

P

Ground


2

GND

P

Ground


3

GND

P

Ground


4

VDD

P

External main and I/O power supply ; +3.3V


5

VDD

P

External main and I/O power supply ; +3.3V


6

VDD

P

External main and I/O power supply ; +3.3V


7

VDD

P

External main and I/O power supply ; +3.3V


8

GND

P

Ground


9

NC

-

Not connect


10

NC

-

Not connect


11

NC

-

Not connect


12

GND

P

Ground


13

OLV0P

I

LVDS odd data 0-


14

OLV0P

I

LVDS odd data 0+


15

GND

P

Ground


16

OLV1N

I

LVDS odd data 1-


17

OLV1P

I

LVDS odd data 1+


18

GND

P

Ground


19

OLV2N

I

LVDS odd data 2-


20

OLV2P

I

LVDS odd data 2+


21

GND

P

Ground


22

OLVCLKN

I

LVDS odd clk -


23

OLVCLKP

I

LVDS odd clk +


24

GND

P

Ground


25

OLV3N

I

LVDS odd data 3-


26

OLV3N

I

LVDS odd data 3-


27

GND

P

Ground


28

ELV0N

I

LVDS even data 0-


29

ELV0P

I

LVDS even data 0+


30

GND

P

Ground
