Z21002HD 480*480 2.1 pouces Affichage LCD rond Interface HDMI 380 luminosité des lentes

L'un des plus petits panneaux d'écran LCD TFT est l'écran LCD TFT rond de 2.1 pouces. Un panneau LCD TFT, un IC, un rétroéclairage, un écran tactile et un FPC constituent la majorité d'entre eux.

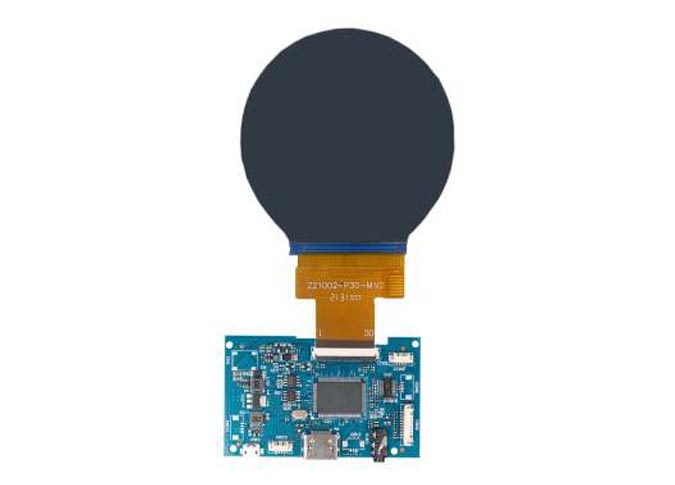

android development board with display
android development board with display

Specification of Z21002HD 480*480 2.1 Inch Round LCD Display HDMI Interface 380 Nits Brightness


No.

Item

Specification

Unit

1

Display Size (Diagonal)

2.1

inch

2

Display Resolution

480 (H) × RGB × 480 (V)

pixels

3

Pixel Pitch

111 (H) × 111 (V)

um

4

LCM Outline Dimension

(Without FPC)

56.18 (W) × 59.71 (H) × 2.3 (T)

mm

5

LCD Outline Dimension

55.88 (W) × 59.36 (H) × 0.8 (T)

mm

6

LCD Active Area

53.28 (W) × 53.28 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7701S-G5

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.0% Min: 3.6%

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

14

FPC Version

Z21002-P30-M V4

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 4 Parallel (4 lights in total)

-

19

Luminance

380

nit

20

Weight

0.012

kg


Chipest

Self made chipest

Application

Raspberry Pi, PC,3D Printer, VR prejector, Medical, Industry, high lightscreen, drone

OSD Language

Chinese English


Board

Type

LED/LCD

Interface

Single/MIPI

Max Resolution

1440*2560

Video Input

PC-RGB

Format

1440*2560

HDMI

480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2K

Audio Input

PC Audio

Earphone input

0.2 ~ 2.0 VRMS

Audio output

Frequency Response

100Hz~15KHz @±3dB (1KHz, 0dB reference signal)

Max output power

2×1W (8Ω) THD+N<10%@1KHz

(power voltage: 5V, audio input: 0.5VRMS)


Power

Request

5V, 5VSB (built in)

Board voltage

3.3V/5V

admin

Standby mode consumption < 0.5W (Limit mainbaord)

KEY BUTTON

Power, Menu, Vol+, Vol-, Setup/Quit
