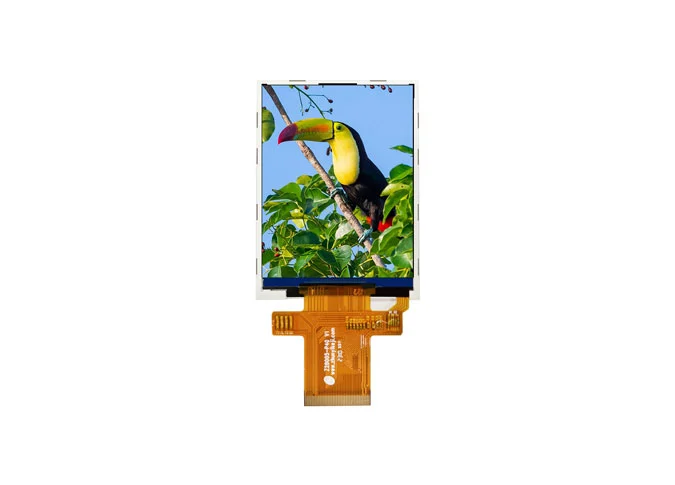

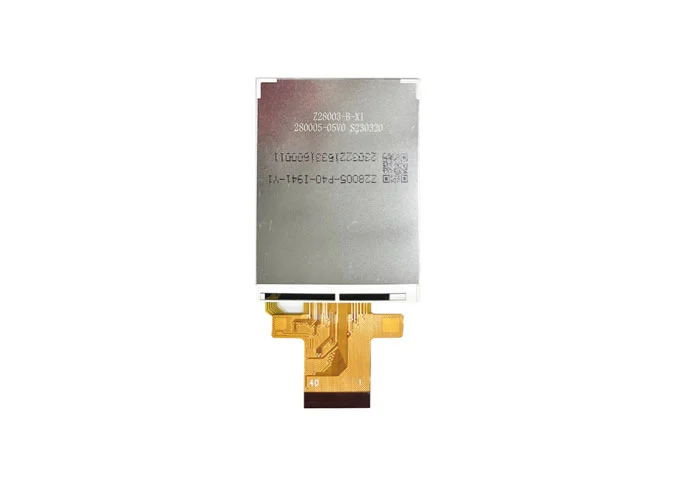

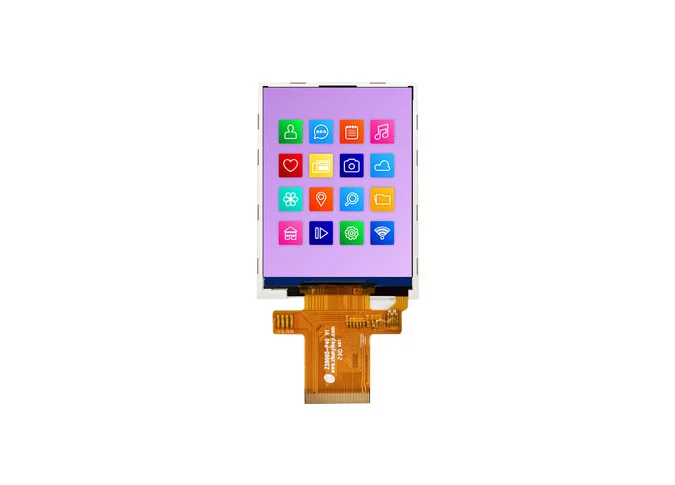

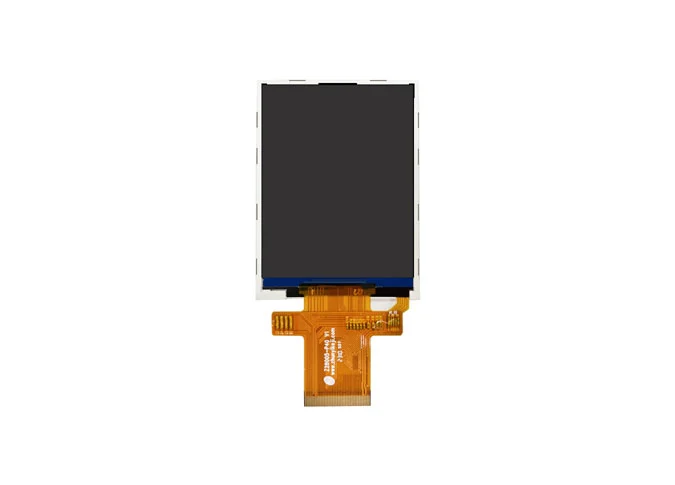

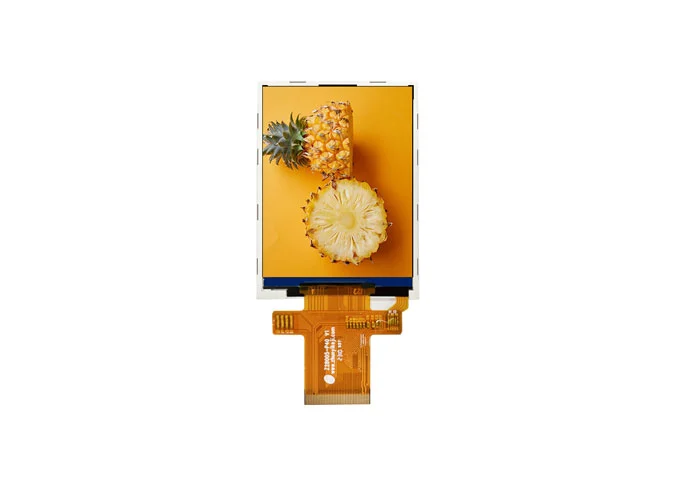

Z28005 Écran LCD TFT 2.8 pouces 240*320 Résolution IPS Vue Angle ILI9341V Contrôleur SPI/MCU

1

Display Size (Diagonal)

2.8

inch

2

Display Resolution

240(H)  × RGB × 320  (V)

pixels

3

Pixel Pitch

180(H) × 180  (V)

um

4

LCM Outline Dimension (Without FPC)

50 (W) ×69.20 (H) ×2.30 (T)

mm

5

LCD Outline Dimension

46.20 (W) × 63.88 (H) × 0.8 (T)

mm

6

LCD Active Area

43.20  (W)  ×57.60  (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ILI9341V

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.8%    Min:4.5%

-

13

LCD Contrast Ratio

Typ.: 1200    Min:1000

-

14

FPC Version

Z28005-P40 V1

-

15

Interface

MCU/SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/3 Series 2 Parallel (6 lights in total)

-

19

Luminance

Typ.:700

nit

20

Weight

TBD

kg

1

GND

Ground

2

NC(YU)

No Connection(Touch    Panel    Up    Side)

3

NC(XL)

No Connection(Touch    Panel    Left    Side)

4

NC(YD)

No Connection(Touch    Panel    Down    Side)

5

NC(XR)

No Connection(Touch    Panel    Right    Side)

6

NC

No Connection

7

VCI

POWER SUPPLY

8

IOVCC

I/O    POWER SUPPLY

9

TE

Tearing    Effect    PIN

10

CS

Chip    Select    PIN

11

D/CX(SCL)

Data/Command Control    PIN(SPI clock (SCL) clock (SCLK))

12

WR(SPI_DC)

Write enable in 8080 MCU parallel interface(SPI_Data/Command Control

PIN)

13

RD

Read enable in 8080 MCU parallel interface

14-29

DB0-DB15

DATA   BUS

30

RESET

LCM    RESET    PIN

31

IM0

Interface    Select    Pin

32

IM1

Interface    Select    Pin

33

IM2

Interface    Select    Pin

34

DB16

DATA   BUS

35

DB17

DATA   BUS

36

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

37

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

38

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

39

SDI(SDA)

SPI    data    input

40

SDO

SPI    data    output

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
