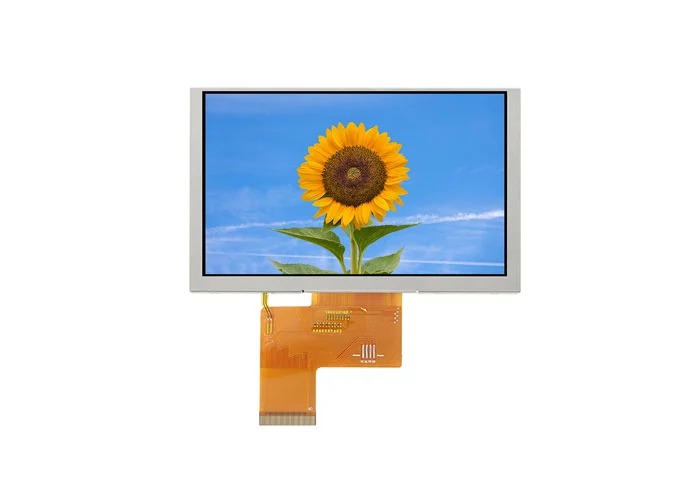

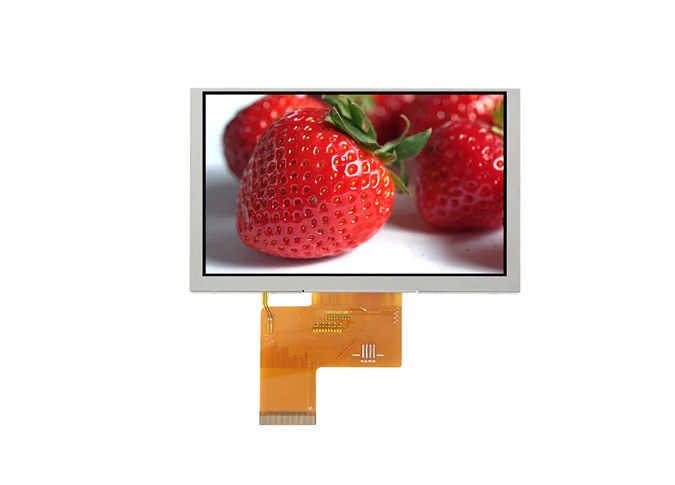

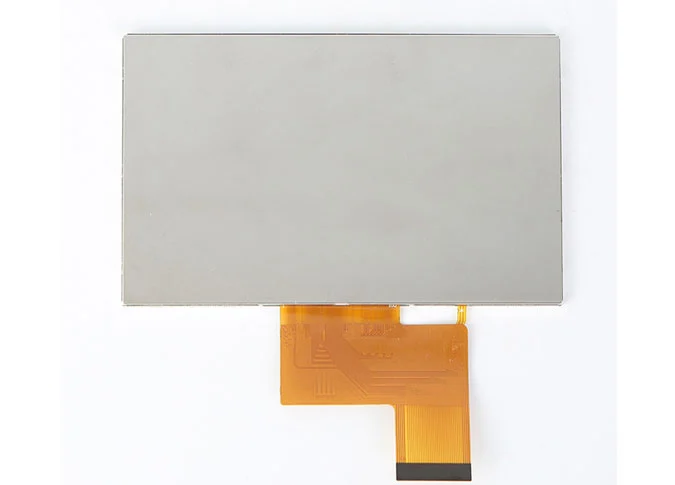

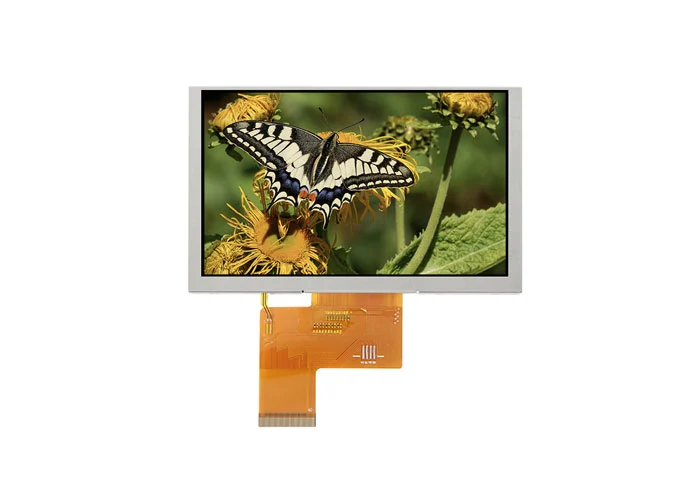

Z50070 5 pouces 800*480 écran LCD IPS horizontal

1

Display Size (Diagonal)

5.0

inch

2

Display Resolution

800(H)  × RGB × 480  (V)

pixels

3

Pixel Pitch

45(H) × 135  (V)

um

4

LCM Outline Dimension

(Without FPC)

120.7 (W) ×75.8 (H) ×3.0 (T)

mm

5

LCD Active Area

108  (W)  ×64.8  (H)

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Driver IC

ST7262E43

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

/

-

12

LCD Contrast Ratio

Typ.: 1500    Min:1000

-

13

FPC Version

Z50070-P40 V1

-

14

Interface

RGB

-

15

Operating Temperature

-20°C~ 70°C

-

16

Storage Temperature

-30°C~ 80°C

-

17

Backlight Arrangement

LED/2 Series 6 Parallel (12 lights in total)

-

18

Luminance

Typ.:350

nit

19

Weight

TBD

kg

1

VLED-

Power for LED back light    cathode

2

VLED+

Power for LED back light    anode

3

NC

Dummy

4

VDD

Power Supply Fordigital circuit

5~ 12

R0~R7

Red data

13-20

G0-G7

Green data

21-28

B0-B7

Blue data

29

GND

Power ground

30

DCLK

Dot Clock Signal

31

DISP

Display on/offMode Control

32

HSYNC

Horizontal synchronization signal

33

VSYNC

Vertical synchronization signal

34

DE

Input Data Enable Control

35

NC

Dummy

36

GND

Power ground

37-40

NC

Dummy

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
