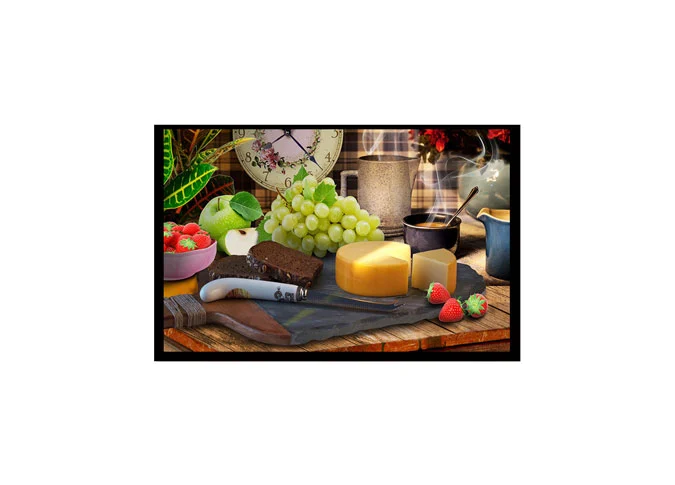

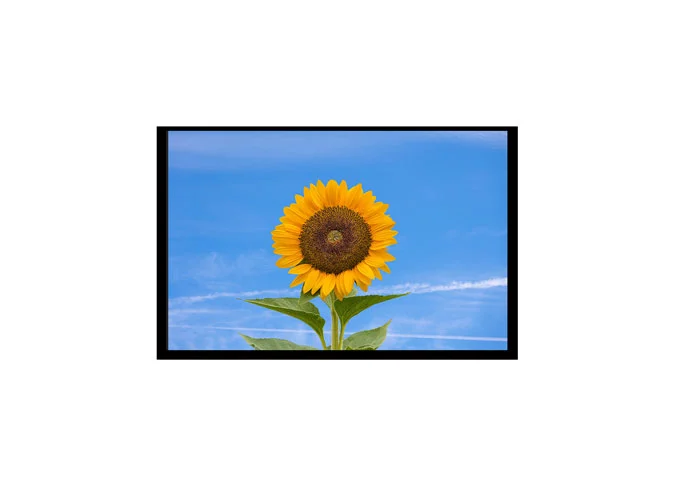

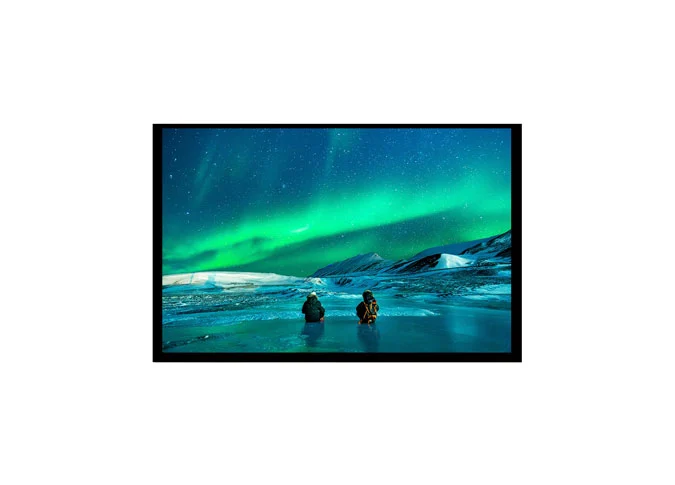

Z80036 TFT LCD écran 8 pouces 1280*800 LVDS interface affichage horizontal pour la maison de vente

1

Display Size (Diagonal)

8.0

inch

2

Display Resolution

1280(H)  × RGB × 800  (V)

pixels

3

Pixel Pitch

134.5(H) × 134.5  (V)

um

4

LCM Outline Dimension (Without FPC)

181.85 (W) ×119.30 (H) ×2.40 (T)

mm

5

LCD Active Area

172.22  (W)  ×107.64  (H)

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Driver IC

/

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

/

-

12

LCD Contrast Ratio

Typ.: 900

-

13

FPC Version

/

-

14

Interface

LVDS

-

15

Operating Temperature

-20°C~ 70°C

-

16

Storage Temperature

-30°C~ 80°C

-

17

Backlight Arrangement

LED/7 Series 4 Parallel (28 lights in total)

-

18

Luminance

Typ.:400

nit

19

Weight

TBD

kg

1

VCOM

Common    Voltage(3.4V)

2-3

VDD

Power Supply(3.3V)

4-6

NC

No Connection

7

GND

Ground

8

Rxin0-

LVDS differential data input

9

Rxin0+

LVDS differential data input

10

GND

Ground

11

Rxin1-

LVDS differential data input

12

Rxin1+

LVDS differential data input

13

GND

Ground

14

Rxin2-

LVDS differential data input

15

Rxin2+

LVDS differential data input

16

GND

Ground

17

RxCLK-

LVDS differential clock input

18

RxCLK+

LVDS differential clock input

19

GND

Ground

20

Rxin2-

LVDS differential data input

21

Rxin2+

LVDS differential data input

22

GND

Ground

23-24

NC

No Connection

25

GND

Ground

26-28

NC

No Connection

29

AVDD

Power For Analog(+10.4V)

30

GND

Ground

31-32

LEDK

LED Cathode

33-34

NC

No Connection

35

VGL

Gate OFF Voltage(-7V)

36-37

NC

No Connection

38

VGH

Gate On Voltage(+18V)

39-40

LEDA

LED Anode

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
